JFR-222 Glass Round Edge Grinding Machine Glass Polishing Edging Automatic Glass Edger Grinder

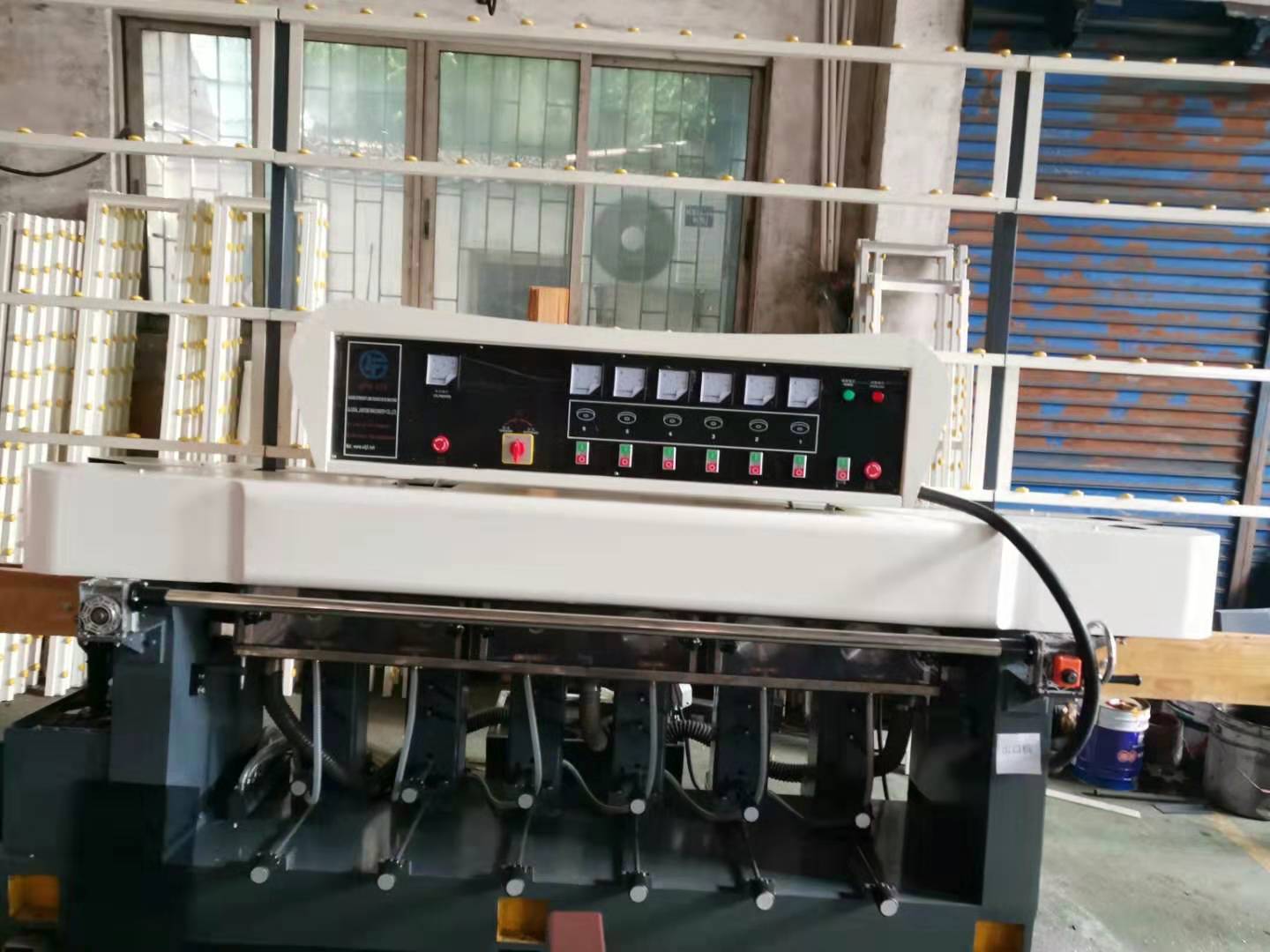

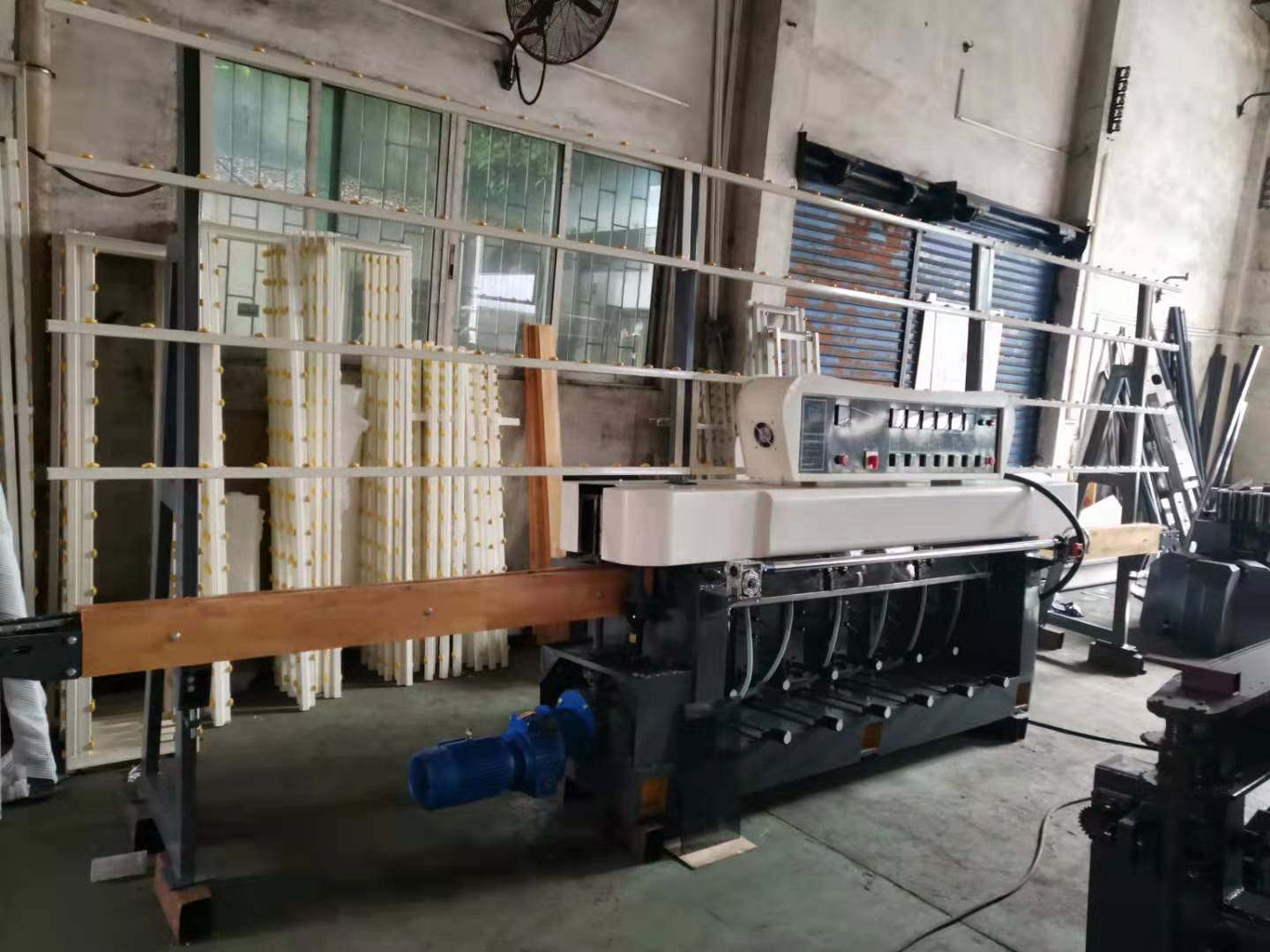

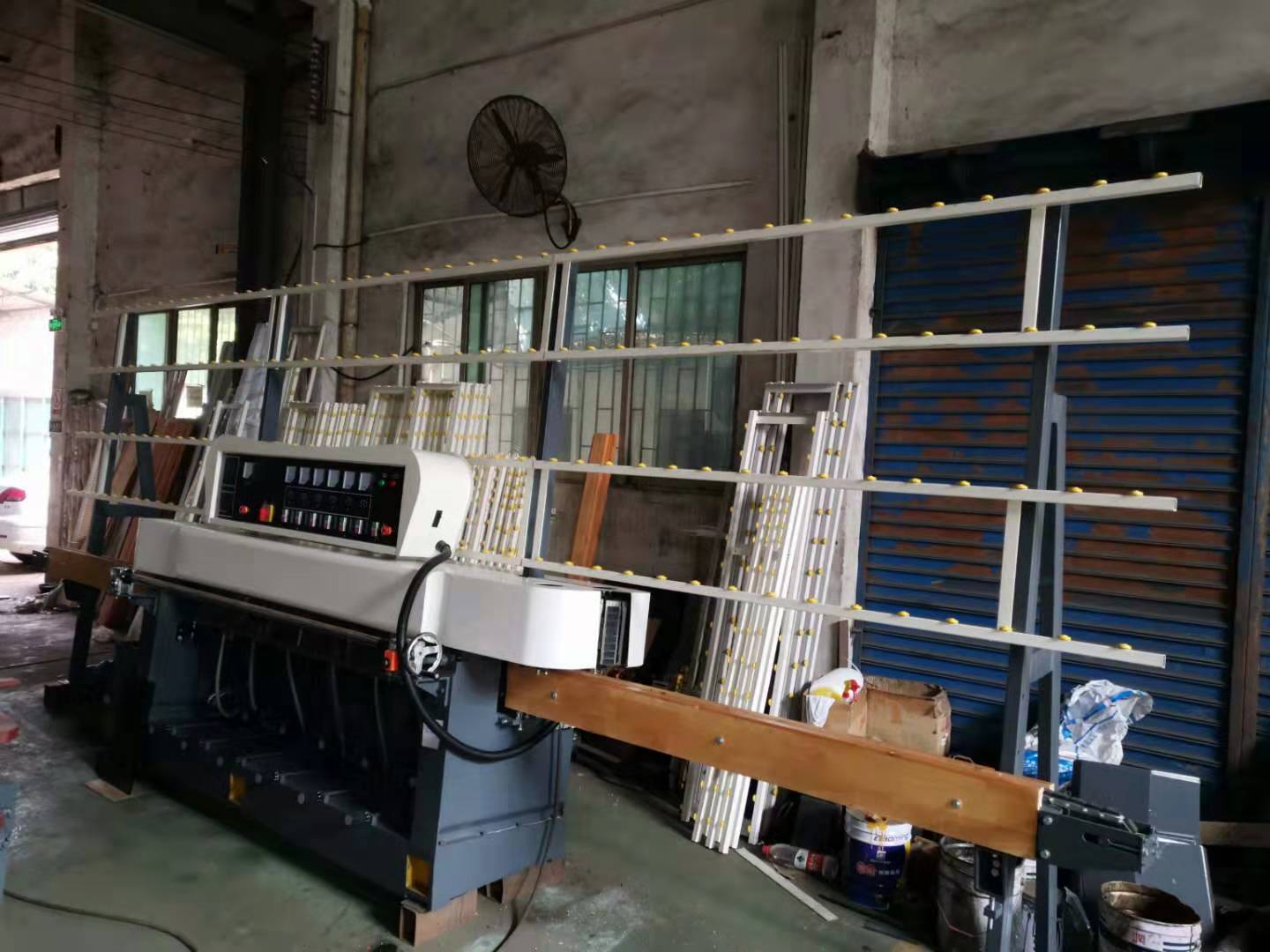

JFR-222 6 Motors Glass Round Edge Straight Line Edging Machine Building Glass Edge Vertical Glass Polishing Machine
The JFR-222 6 motors glass round line edging machine is designed for grinding pencil edge, OG edge,straight line edge and semi-round edge . The kind of the machines have 3 types: 4 motors,6 motors and 8 motors. Coarse grinding,refine grinding and polishing can be finished in one procession. The feeding speed can be adjusted.

  • Product Detail
  • Inquiry
Model
JFR-222
Glass thickness
3-25mm
Feeding speed
0.5-5 m/min
Min glass size
100*100mm
Max glass size
2000x2000mm
Power
15KW
Weight
2600KG
Land occupation
6500x1500x2500mm
