Global JFS-151 Hot Sale Glass Edge Polishing Shape Round Grinding Machine Irregular Edging

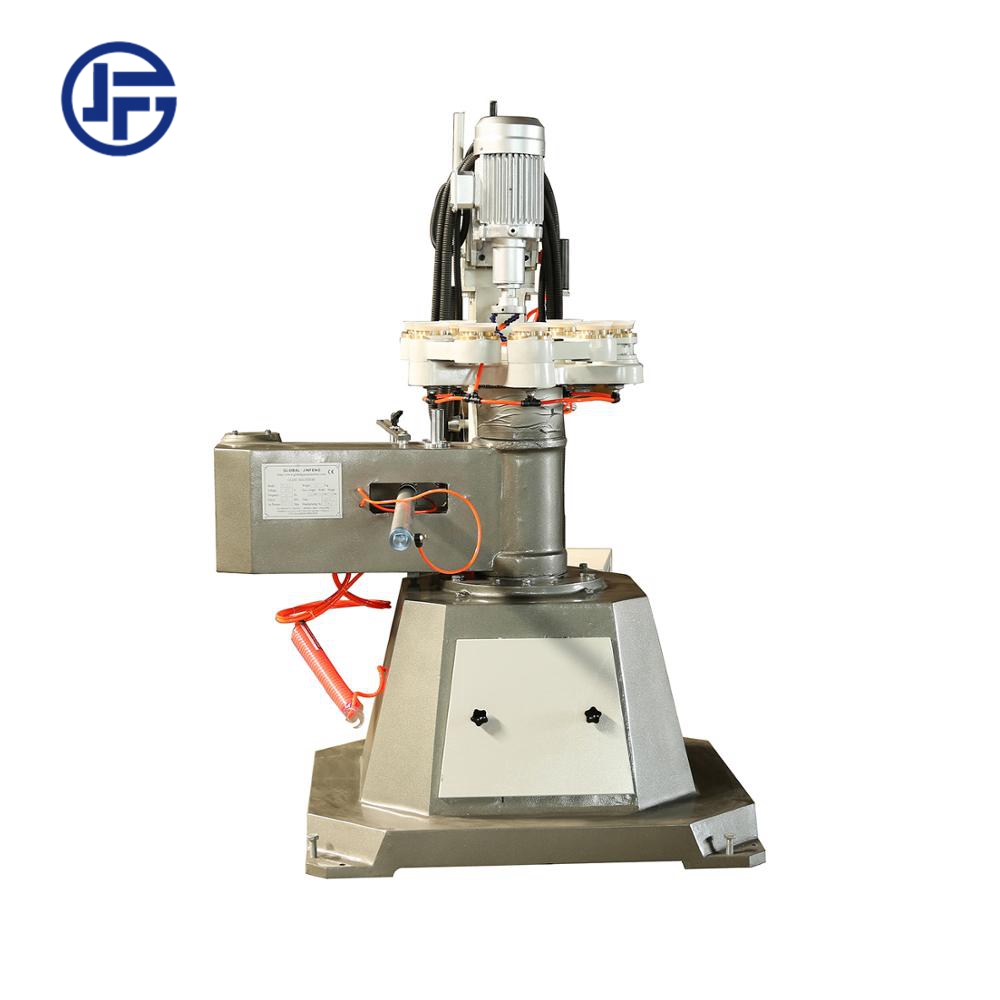

JFS-151 Irregular edge glass shapes polishing rounding edging machine

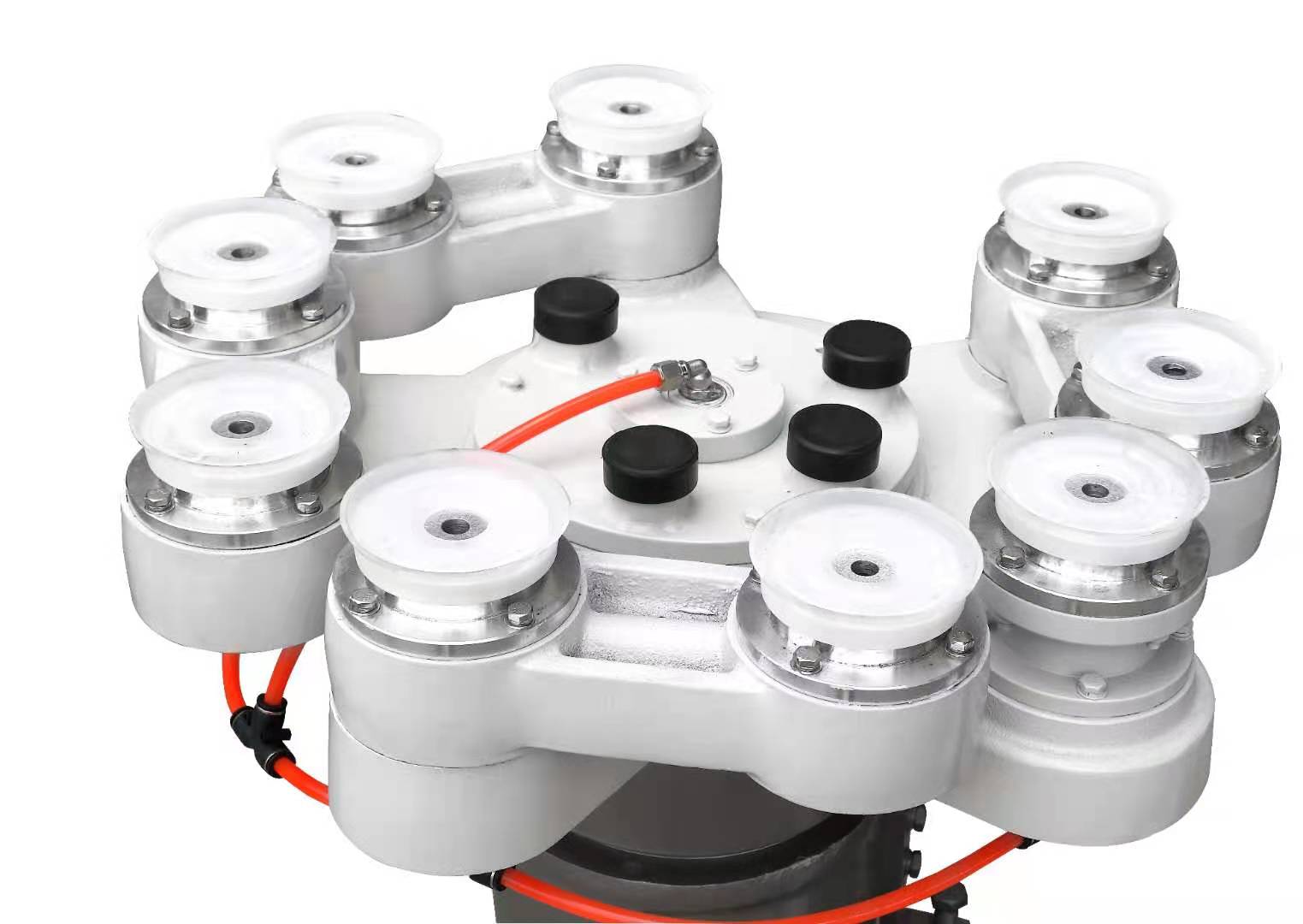

This machine applies to rough and fine polish beveling edge, oval edge and pencil edge of simple special shape glass. The wheels
can be quickly changed and replaced by man in vertical. When polishing round edge glass, three wheels are required to finish rough
and fine polishing in due order. When grinding bevel edge glass, crude grinding. Refine grinding and polishing are alternatively
done by four wheels.
  • Product Detail
  • Inquiry

Model
JFS-151
Glass thickness
3-21mm
Maximum diameter
150-2100mm
Min glass size
100mm
Wheel angle Bevel degree
0°-15°
Bevel degree
0°-20°
Power
2.6kw
Weight
1000kg
Land occupation
2500x2500x1800mm
Rotating speed of working table
0.8-4r/min
Rotating speed of independent tumplate
1.2-6r/min
