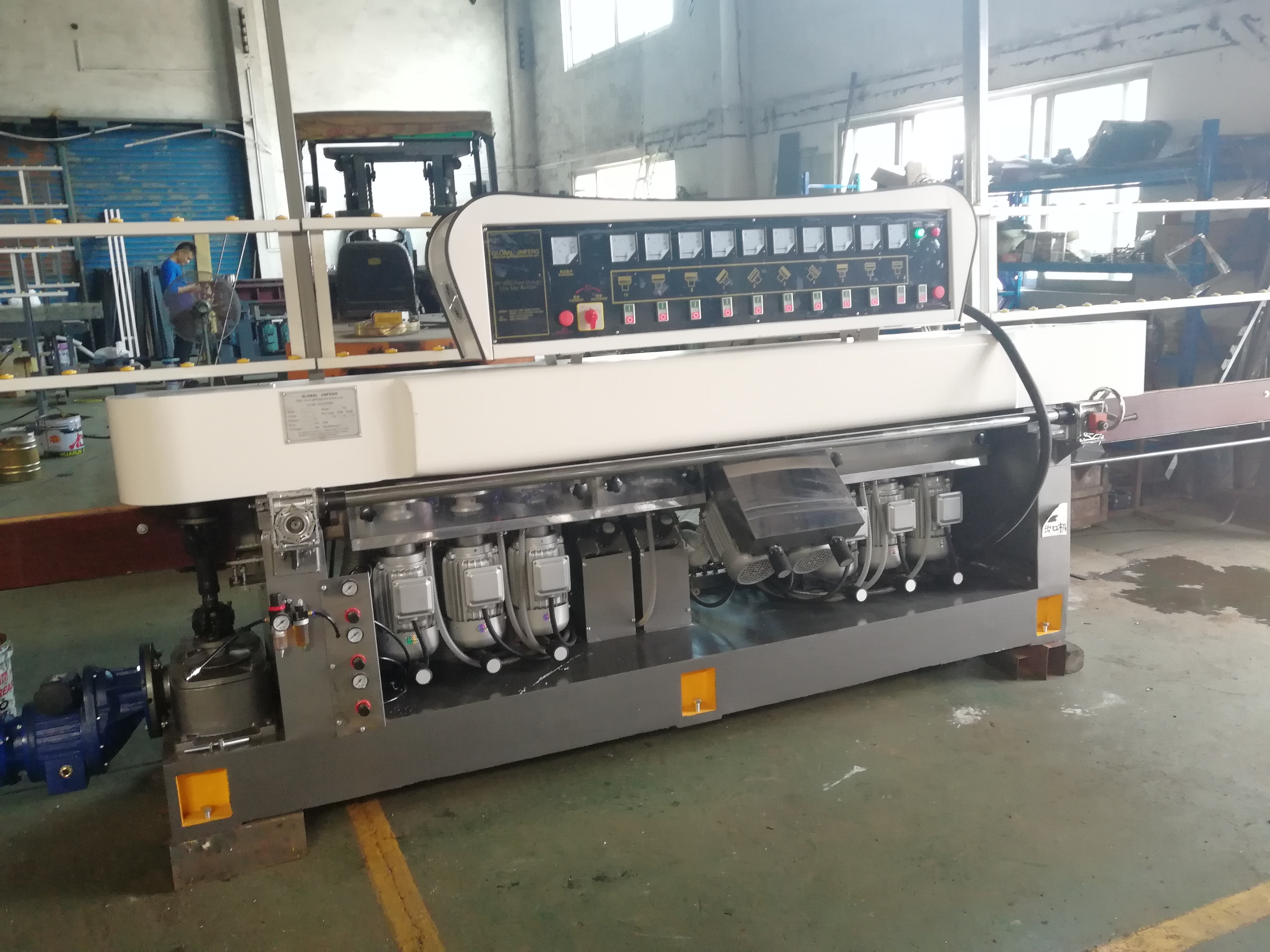

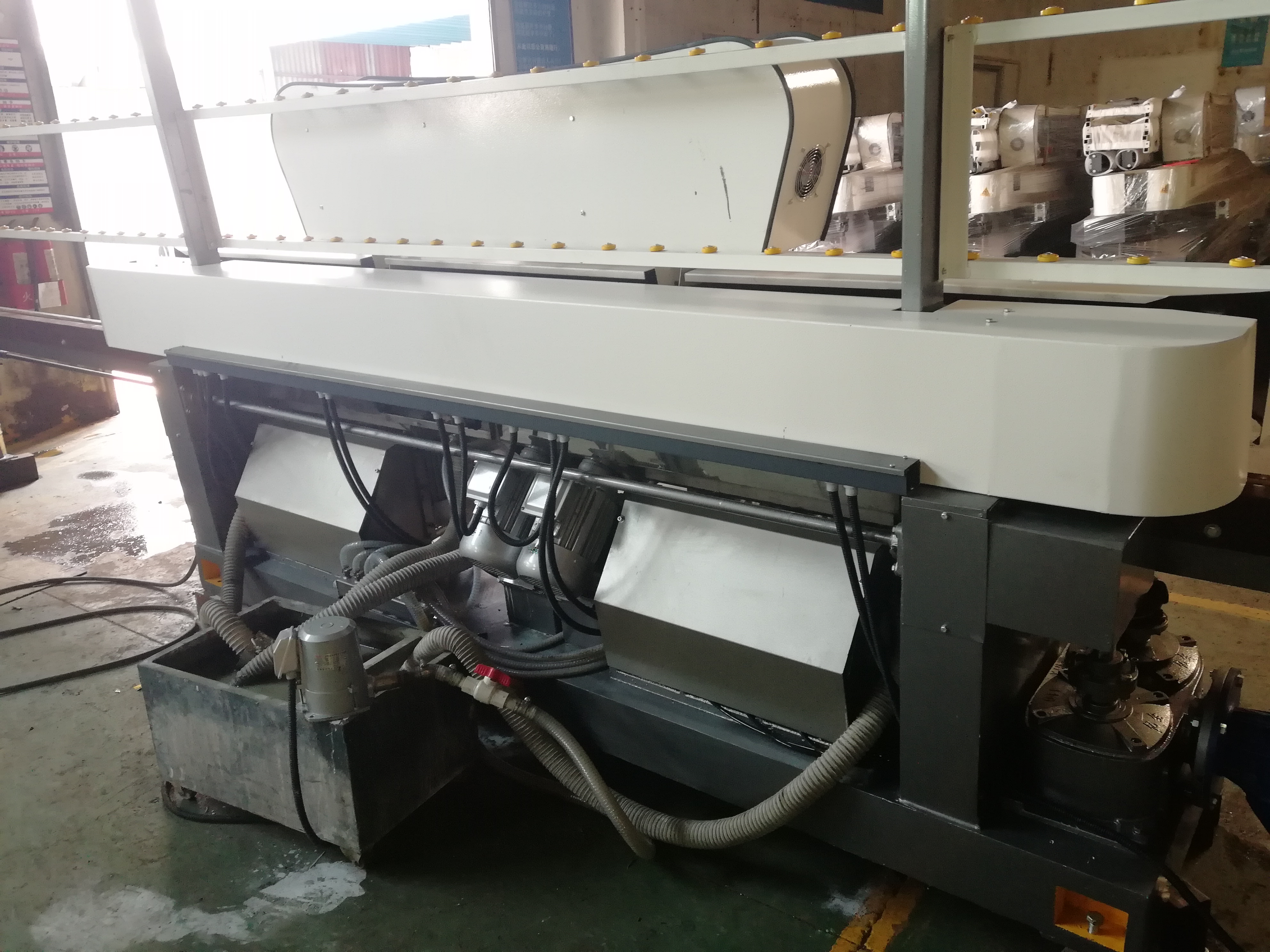

JFE-10325 Glass Straight Line Edging Machine 10 Motors Glass Grinding Polishing Equipment Edger
JFE-10325 Glass straight line edge and polisher with coarse grinding,fine-grinding, polishing and chamfering in one time.It's 10 grinding heads have a powerful function to eliminates lines of glass ,which can strongly improve the polishing brightness of glass.The base,front and rear beans,beds and grinding heads are of casting material, which can bear large loads and has stable performance.
The main features:
* simple operation
* high efficiency
* energy saving
* Famous brand motor and electric,stainless steel water tank
* CE certification
The main features:
* simple operation
* high efficiency
* energy saving
* Famous brand motor and electric,stainless steel water tank
* CE certification
- Product Detail
- Inquiry
Feeding speed: 0.5-5m/min
Max.Glass width: 3000mm
Min. Glass size: 80x80mm
Glass thickness: 3-25mm
Installed power: 20.5kw
Voltage/frequency: 380v/50hz (Customized)
Weight: 3500kg
Overall size: 7200x1000x2500mm
Certification: CE
Seaport: Shenzhen/Shunde/Guangzhou
