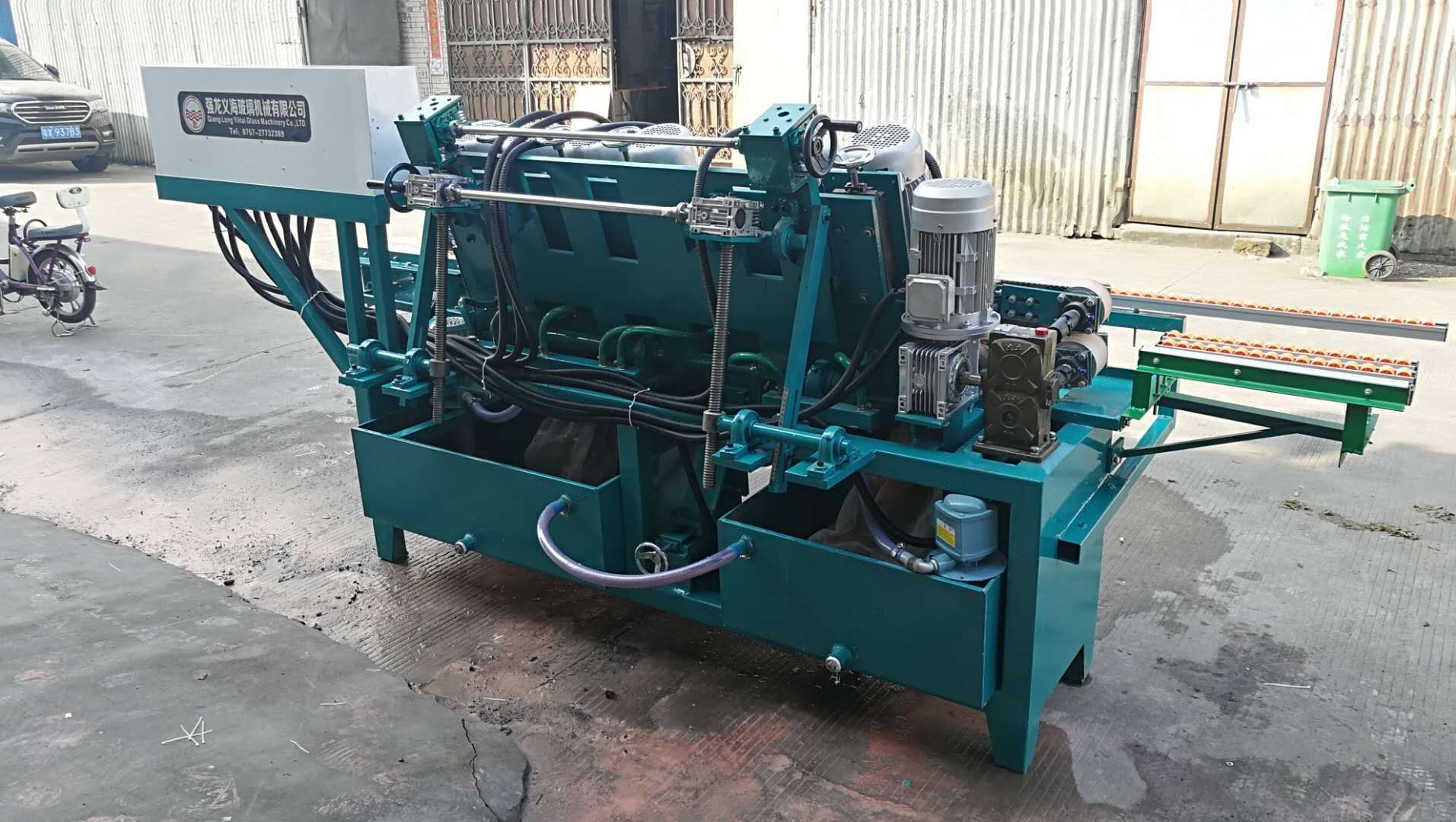

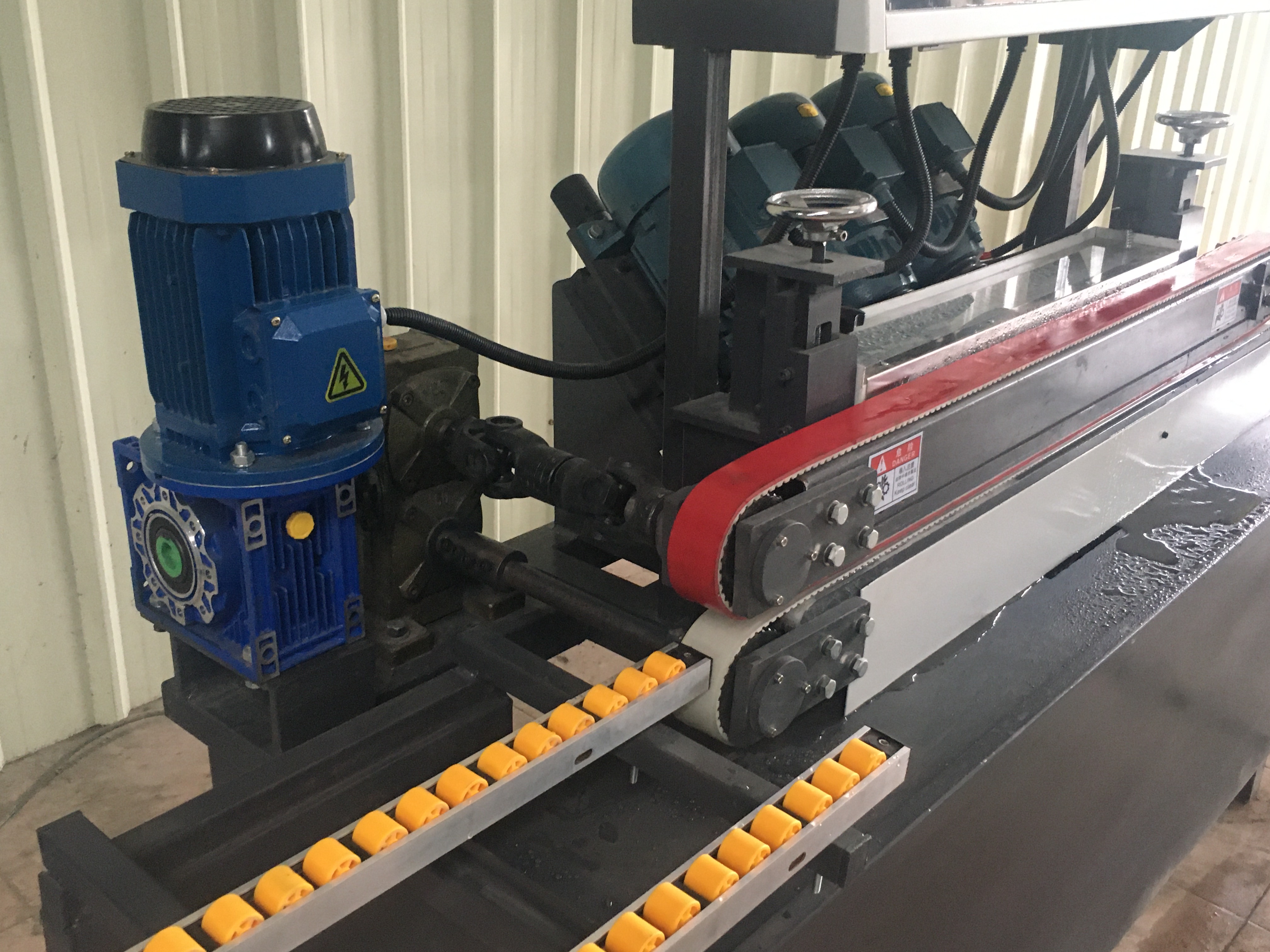

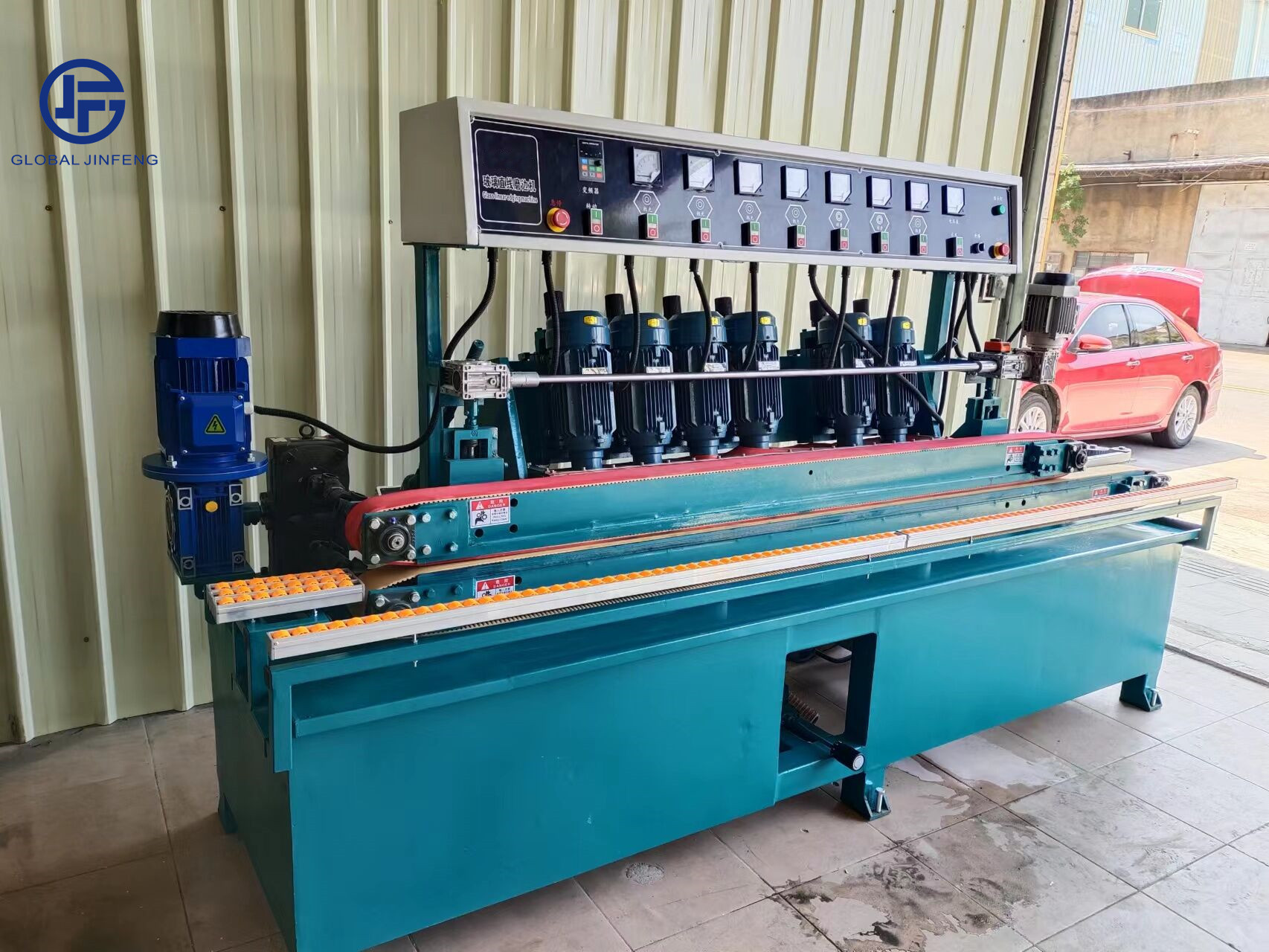

7 Motors Horizontal Glass Beveling Machine
1) Suitable for straight bevel grinding of flat glass of different sizes and thicknesses, with high beveling accuracy and fast efficiency;
2) After rough grinding, fine grinding, and polishing, the grinding surface finish is consistent with the mirror surface, and the angle is accurate;
3) Horizontal small piece glass beveling machine, which can carry out low-angle beveling and deep processing of small pieces of glass, with high precision and good effect. To
4) This product is custom made, according to customer requirements. There are fixed angle and adjustable angle options. The adjustable angle can generally be adjusted from 7° to 15°.

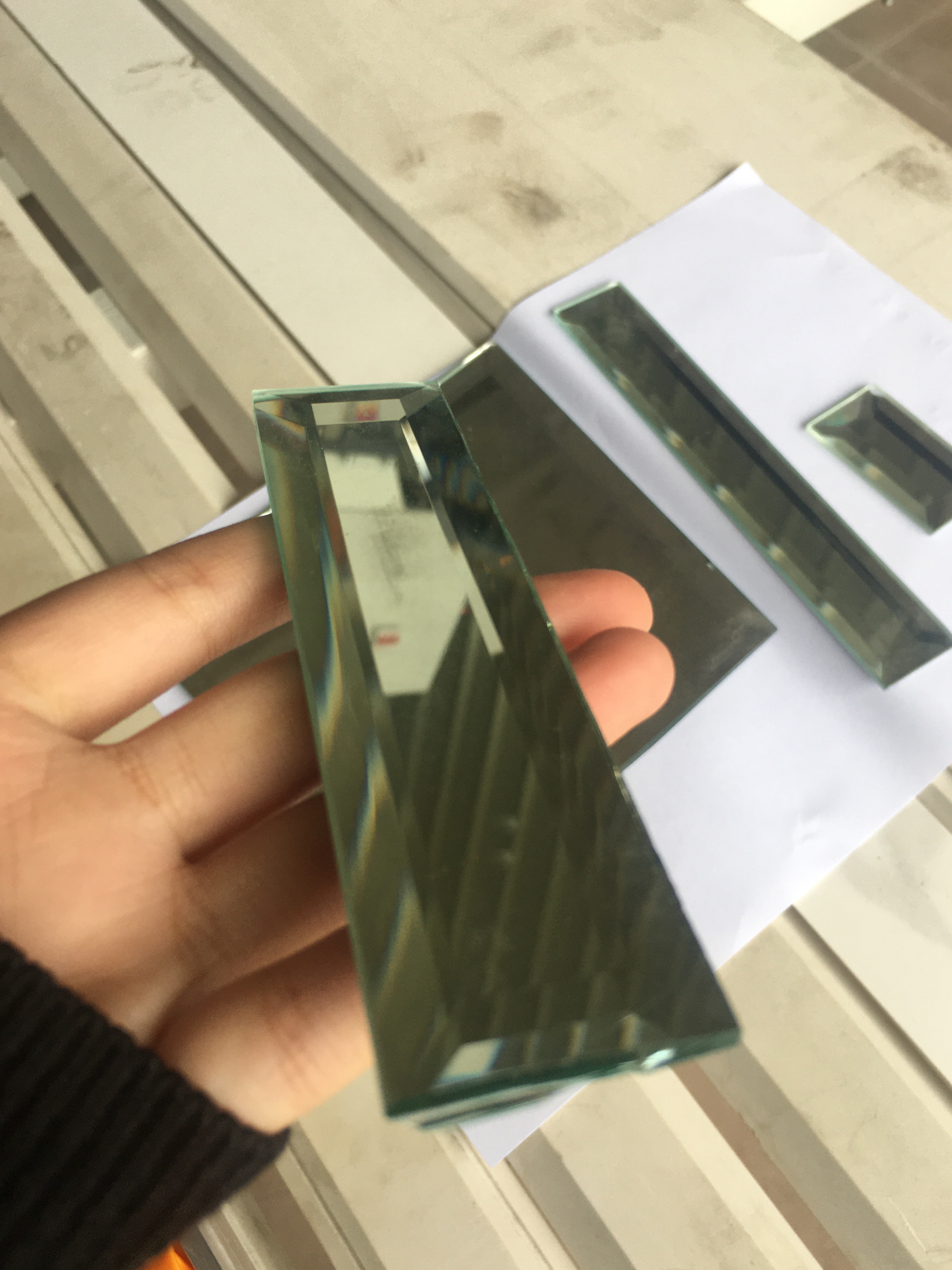

5) It can be used to process mirror glass, furniture decorative glass, doors and windows, photo frames, bathroom mirrors, beauty mirrors, etc.;
  • Product Detail
  • Inquiry
Maximum width of hypotenuse
15mm
Glass thickness
3-15mm
Feeding speed
0.5-5 m/min
Min glass size
55x55mm
Max glass size
1500x1500mm
Power
12.3 KW
Weight
1100KG
