Glass Bevel Edging Machine
Home > Glass Bevel Edging Machine

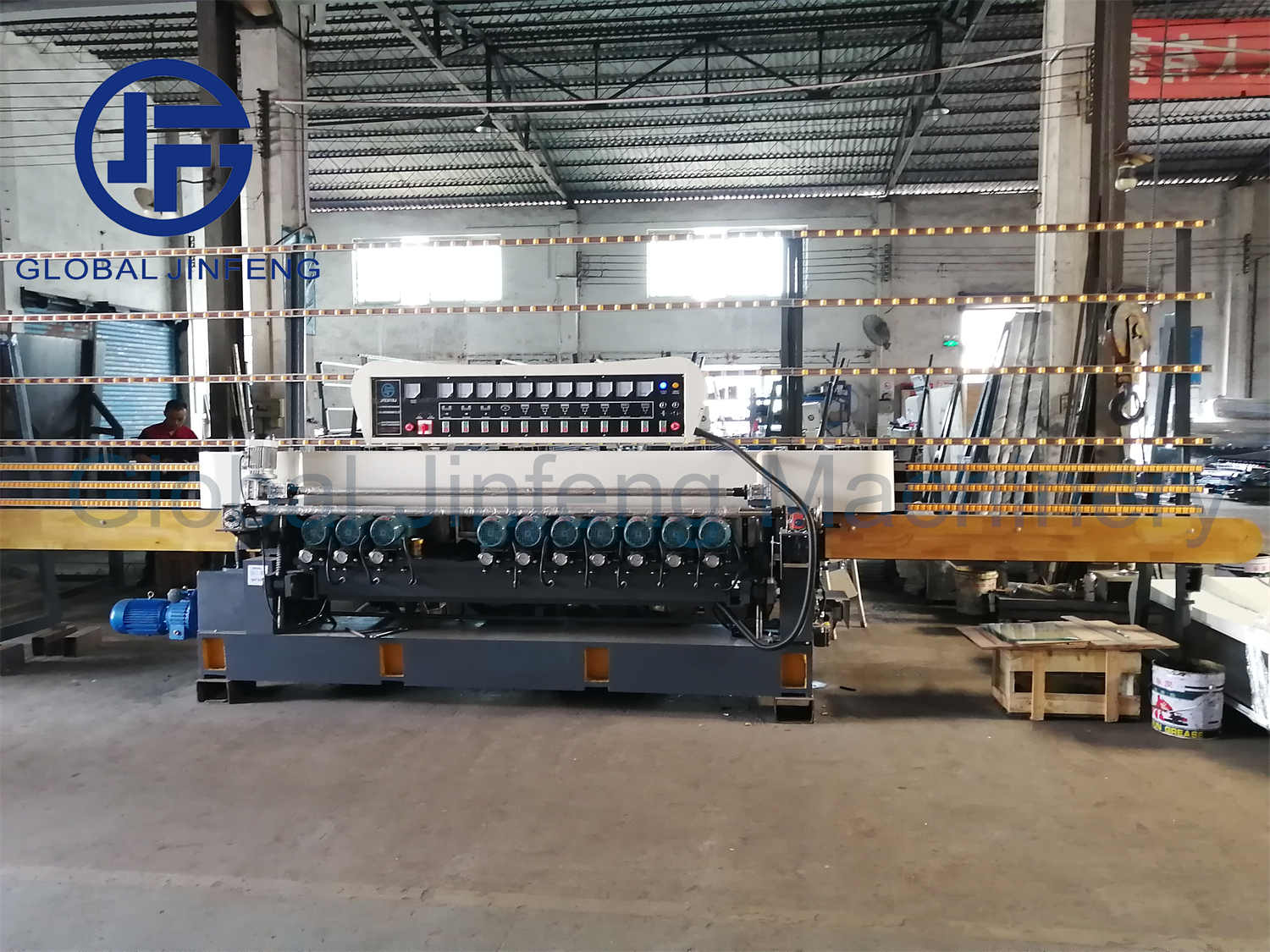

JFE-371SJ 11 Spindles Glass Beveling Machine 30*30mm Bevel Edge Polishing Grinding Machine with PLC

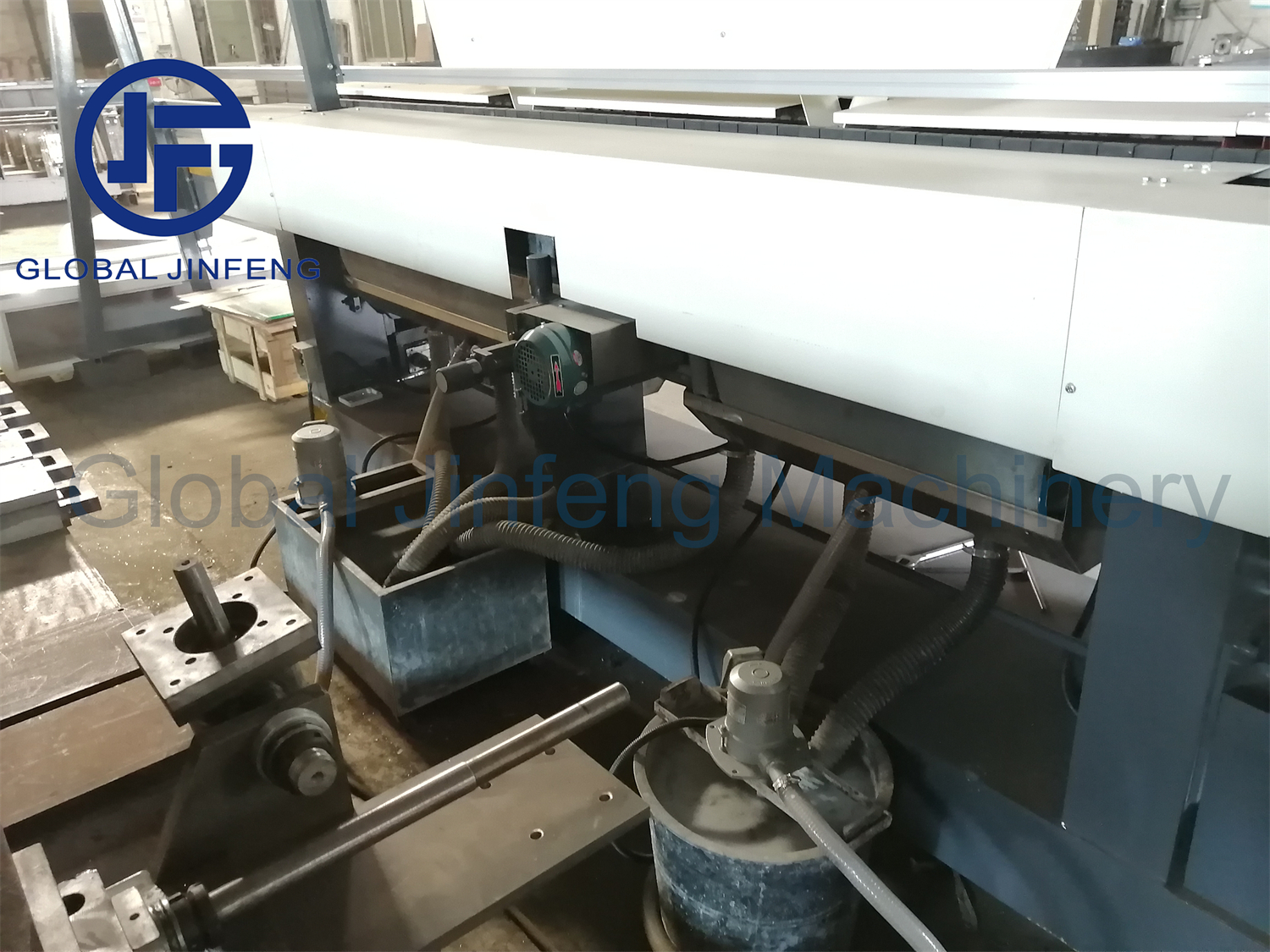

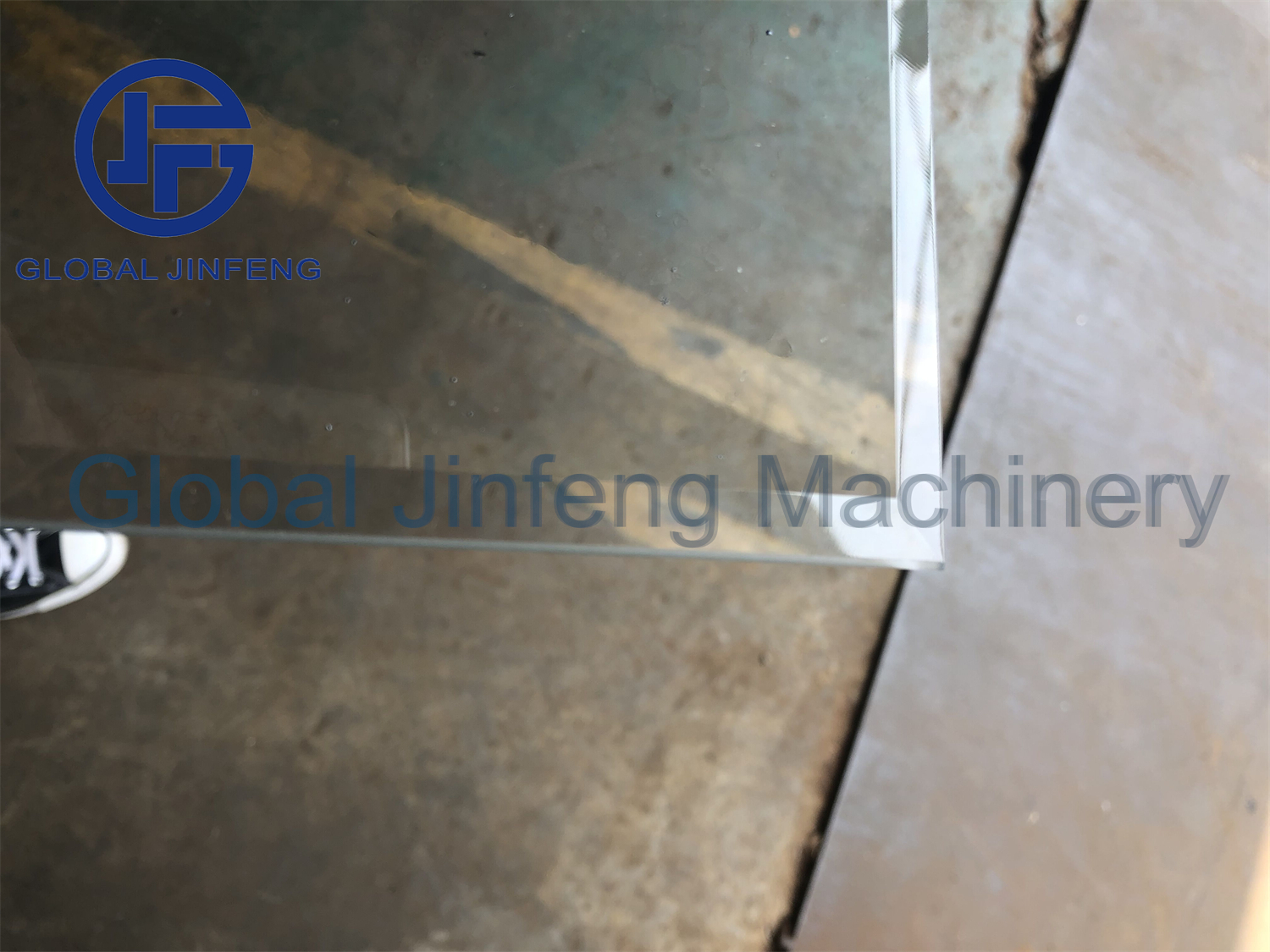

This machine has 11 wheels, drive by motor to grind, polishing beveling edge on mirror and glass. The glass is clamped by pads and transferred automatically to the wheels. The thickness of glass can be adjustable. Before start the motors, need check if the wheels are too close to the glass clamping pads. If yes, adjust it back/lower a little bit to ensure the wheels will not damage the pads.
The main features:
* simple operation
* high efficiency
* energy saving
* Famous brand motor and electric,stainless steel water tank
* CE certification
The main features:
* simple operation
* high efficiency
* energy saving
* Famous brand motor and electric,stainless steel water tank
* CE certification
- Product Detail
- Inquiry
Feeding speed: 0.5-5m/min
Max.Glass width: 2500x2500mm
Min. Glass size: 25x25mm
Glass thickness: 3-19mm
Installed power: 25.5 KW
Voltage/frequency: 380v/50hz (Customized)
Weight: 5000kg
Overall size: 7000X1300X2500mm
Certification: CE
