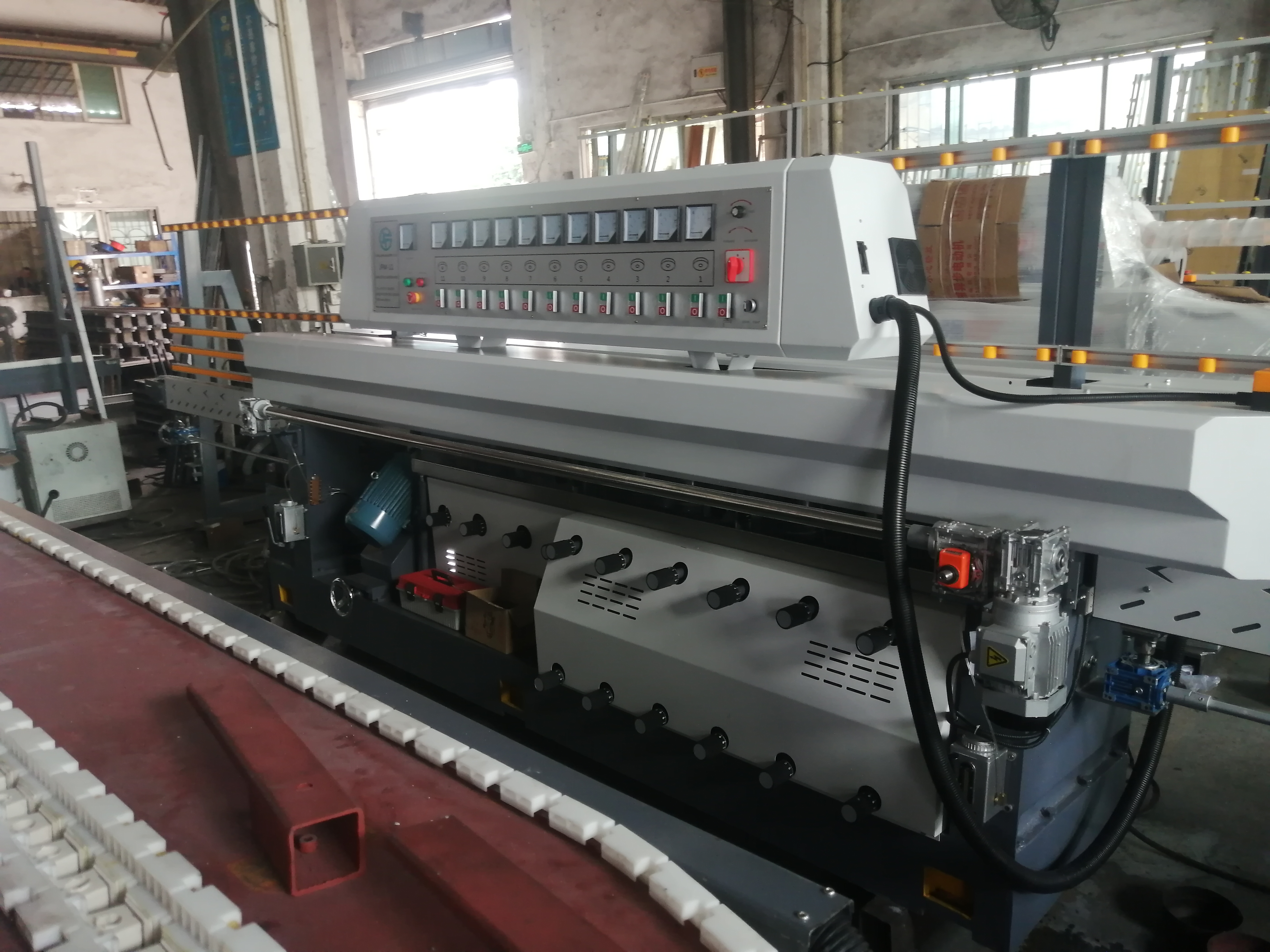

JFM-11 Stone Ceramic Marble Edging Polishing Machine
This machine has 11 wheels, drive by motor to grind, polishing straight line multi-edge on stone and marble.
The glass is clamped by pads and transferred automatically to the wheels.
The thickness of marble can be adjustable.
Before start the motors, need check if the wheels are too close to the stone clamping pads. If yes, adjust it back/lower a little bit to ensure the wheels will not damage the pads.
The glass is clamped by pads and transferred automatically to the wheels.
The thickness of marble can be adjustable.
Before start the motors, need check if the wheels are too close to the stone clamping pads. If yes, adjust it back/lower a little bit to ensure the wheels will not damage the pads.
- Product Detail
- Inquiry
| Specification | Data |
| Feeding speed | 0.5-5m/min |
| Max.Glass width | 2000mm |
| Min. Glass size | 60x60mm |
| Glass thickness | 3-80mm |
| Scope of application | Straight edge/ Beveling edge/ 45 degree edge |
| Installed power | 38kw |
| Voltage/frequency | 380v/50hz |
| Weight | 3800kg |
| Overall size | 7500x1000x2000mm |
