Glass Round-Angle Machine
Home > Glass Round-Angle Machine

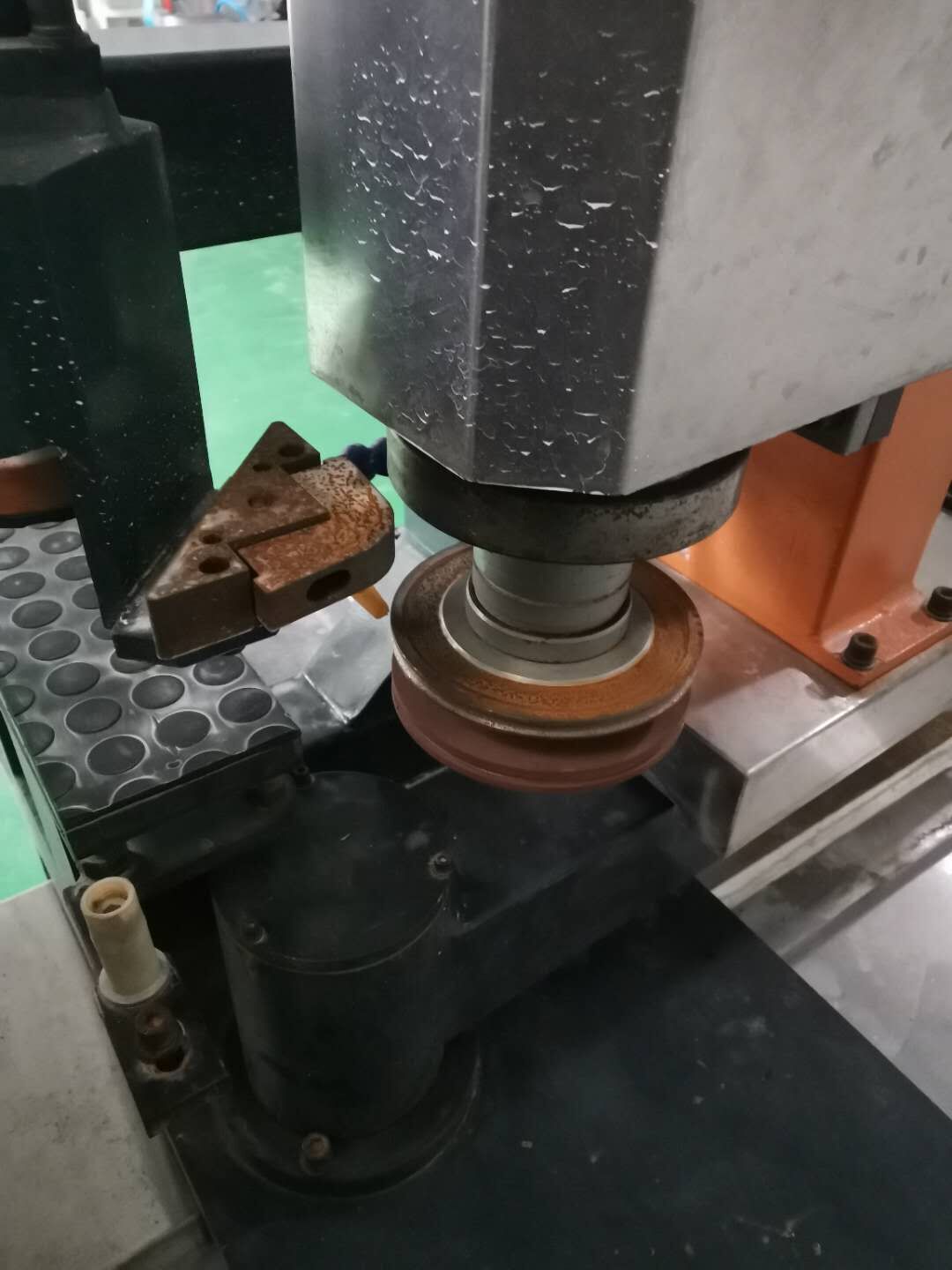

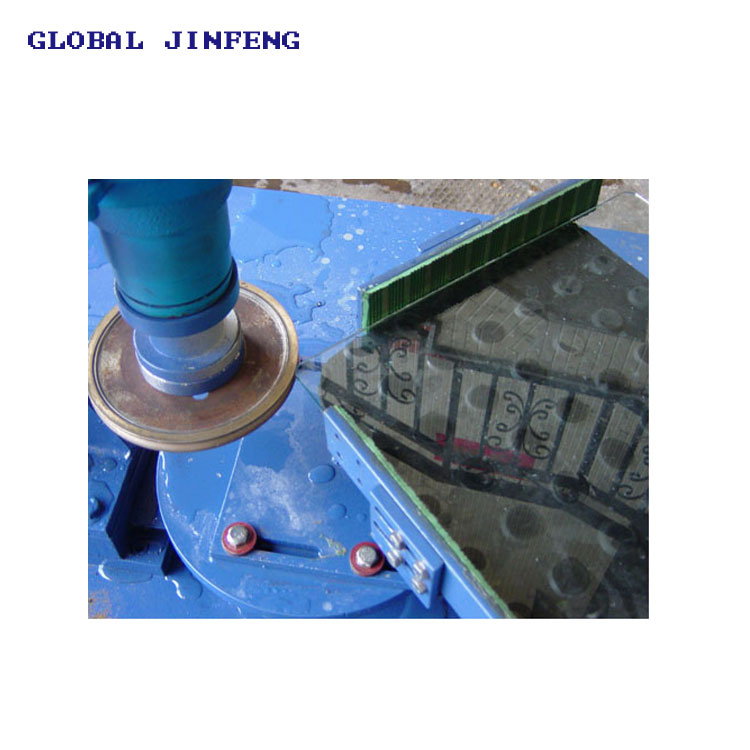

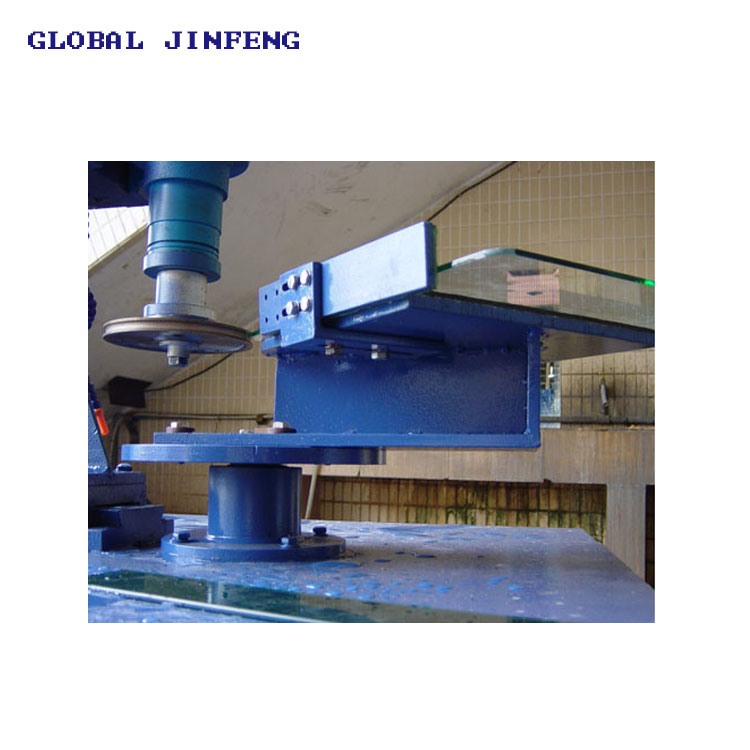

JF Simple and small size glass corner grinding machine

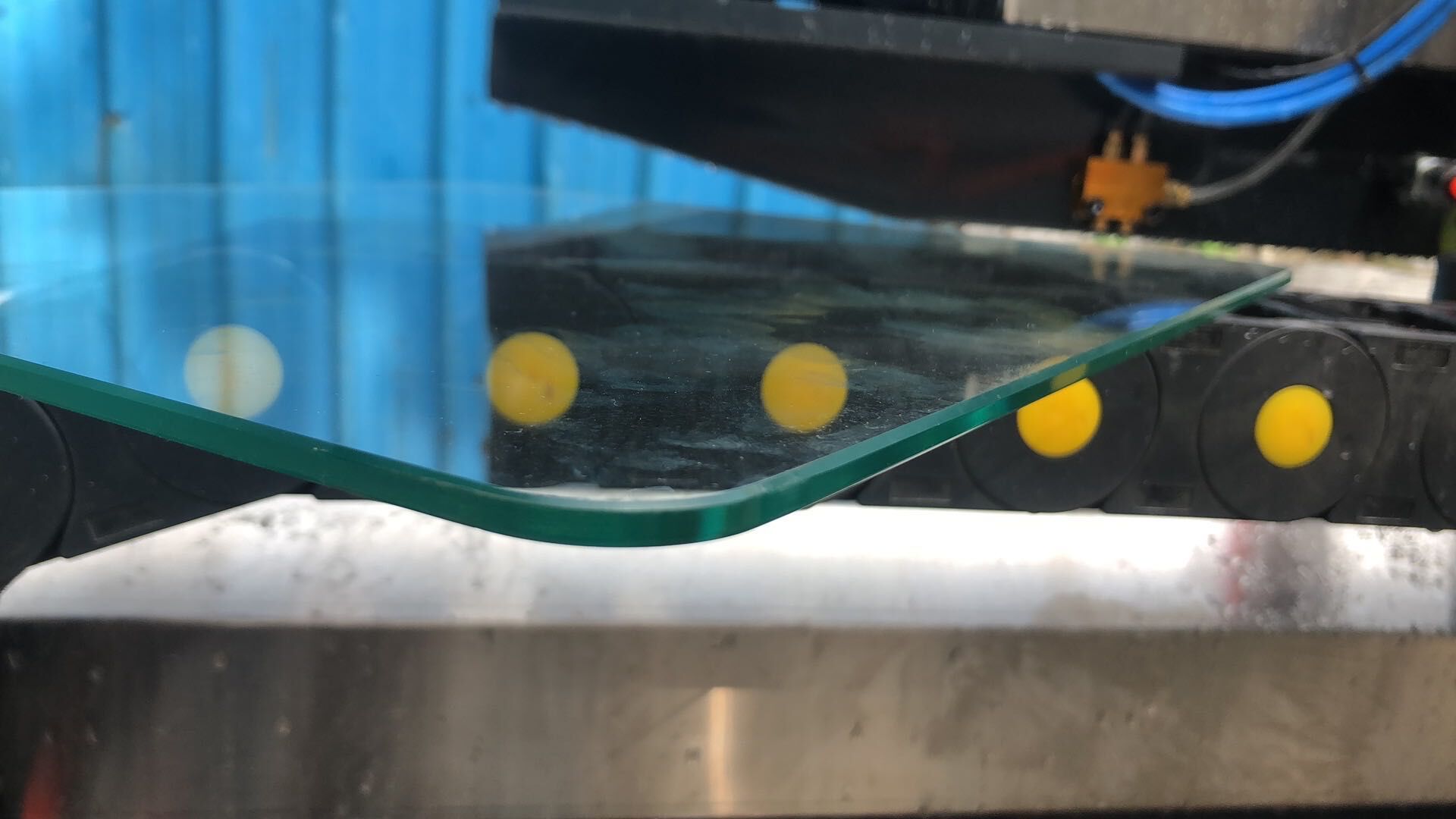

This machine use for grinding glass corner,adopts linear bearing mve,convenient and save labor. It can be installed 2 wheels at the same time,pneumatically change the position of the wheels; Rounder corder can be grind into round edge,OG edge,straight line edge and so on.Widely use for glass furniture process.
The main features:
1. Small size,save space
2. Easy to use,save power
3. Different edge can be grinded,like straight line edge,round edge,OG edge.
- Product Detail
- Inquiry
| Model | JFC |
| Glass thickness | 3-25mm |
| Max.size of glass | 1500x1000mm |
| Max.corner angle | R60mm |
| Power | 1.5KW |
| Weight | 200KG |
| Land occupation | 1300x800x1500mm |
