JFW2500 Horizontal Glass Cleaning Machine with Washing and Drying Automatic Flat Glass Low-E Glass Mirror Washer and Dryer
JFW2500 Automatic flat glass washing and drying machine for 2500mm glass with high speed
JFW- series glass washing machine is regulated by a stepless speed change device, Air blower and temperature are also regulated by

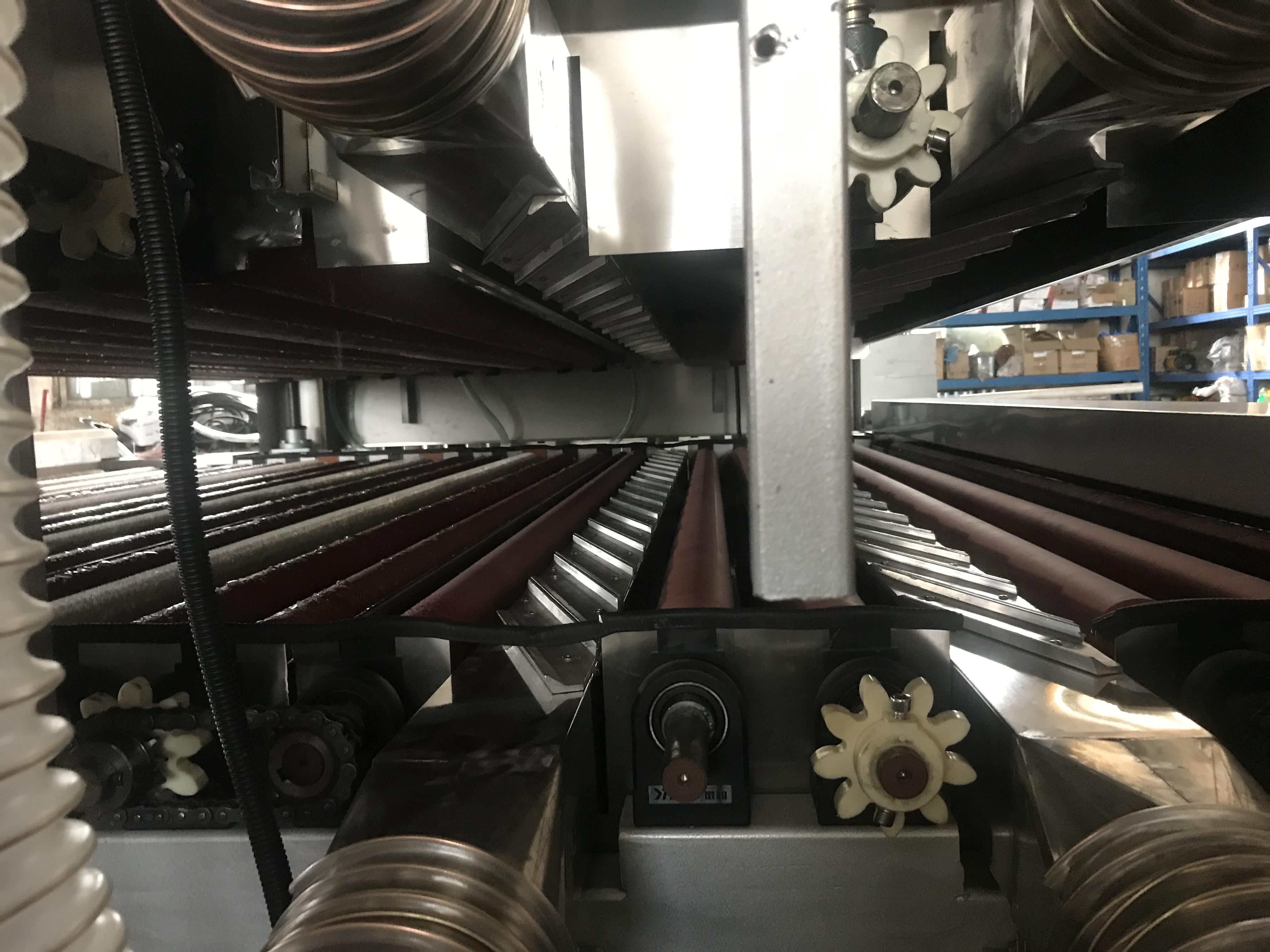

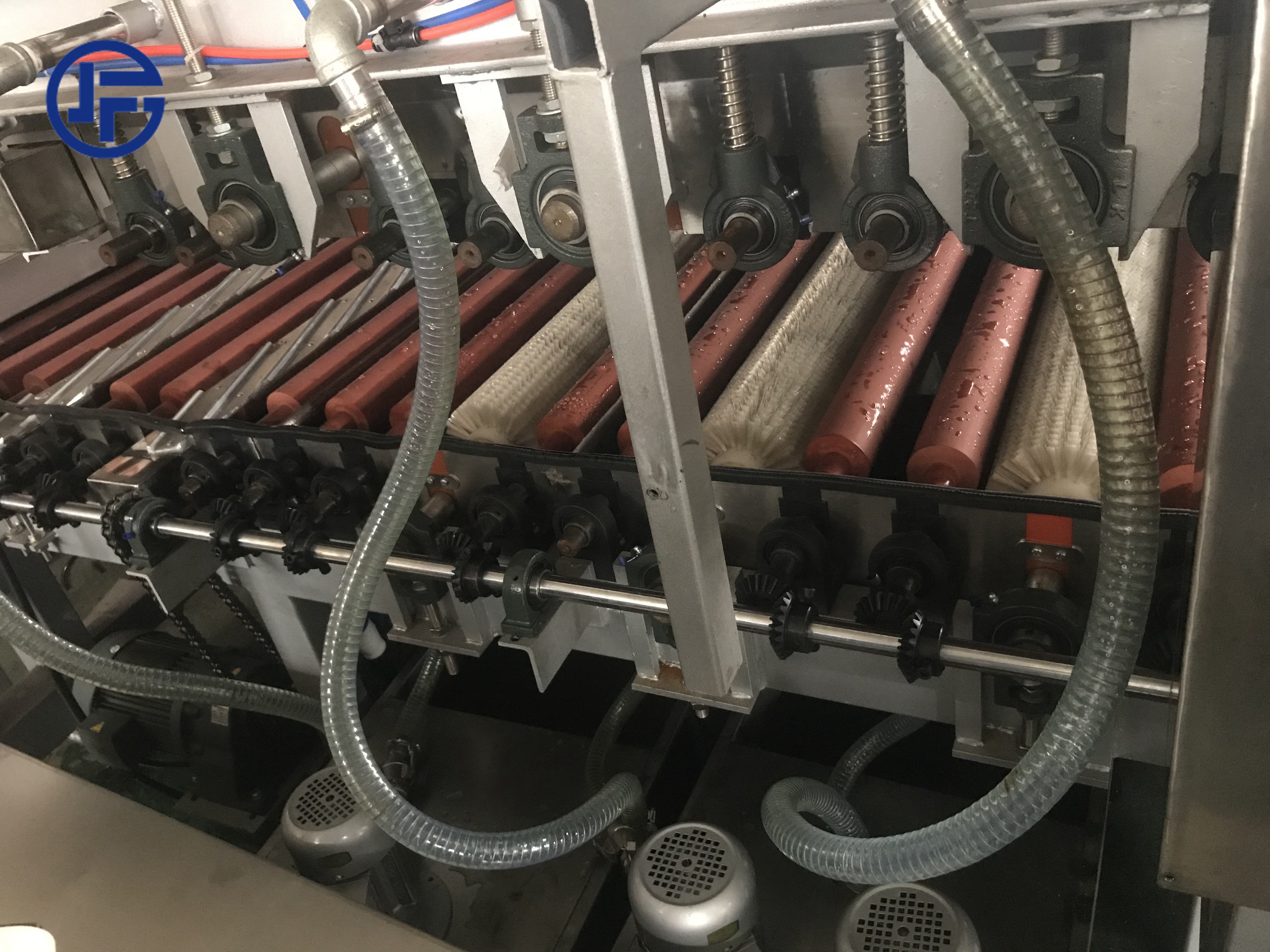

a temperature control device. As the machine consists of multi cylinders, it can operate on wide surface, cleaning process is completed with recycled water.
The main features:

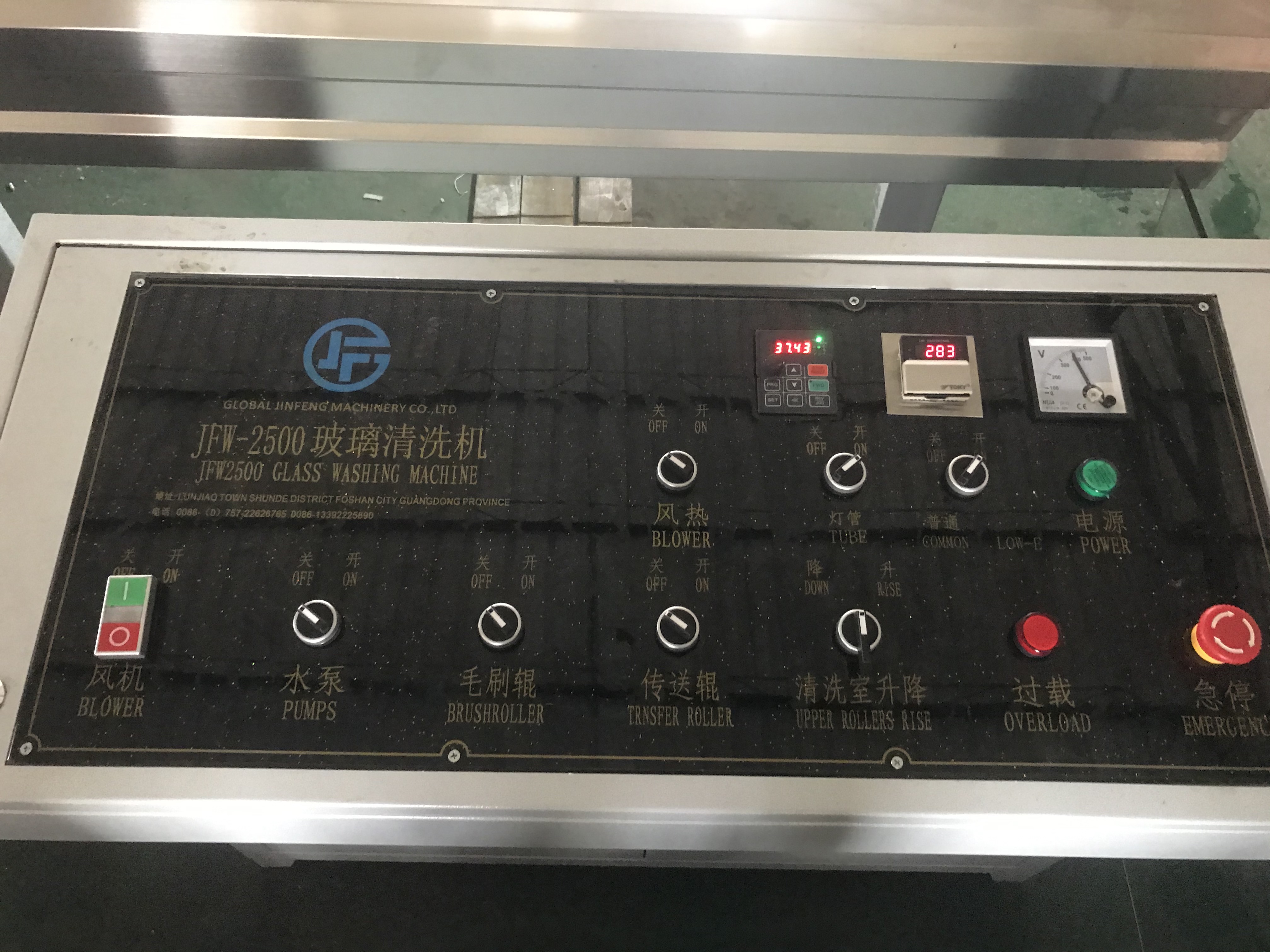

1,Transmit speed is controlled by variable motor;

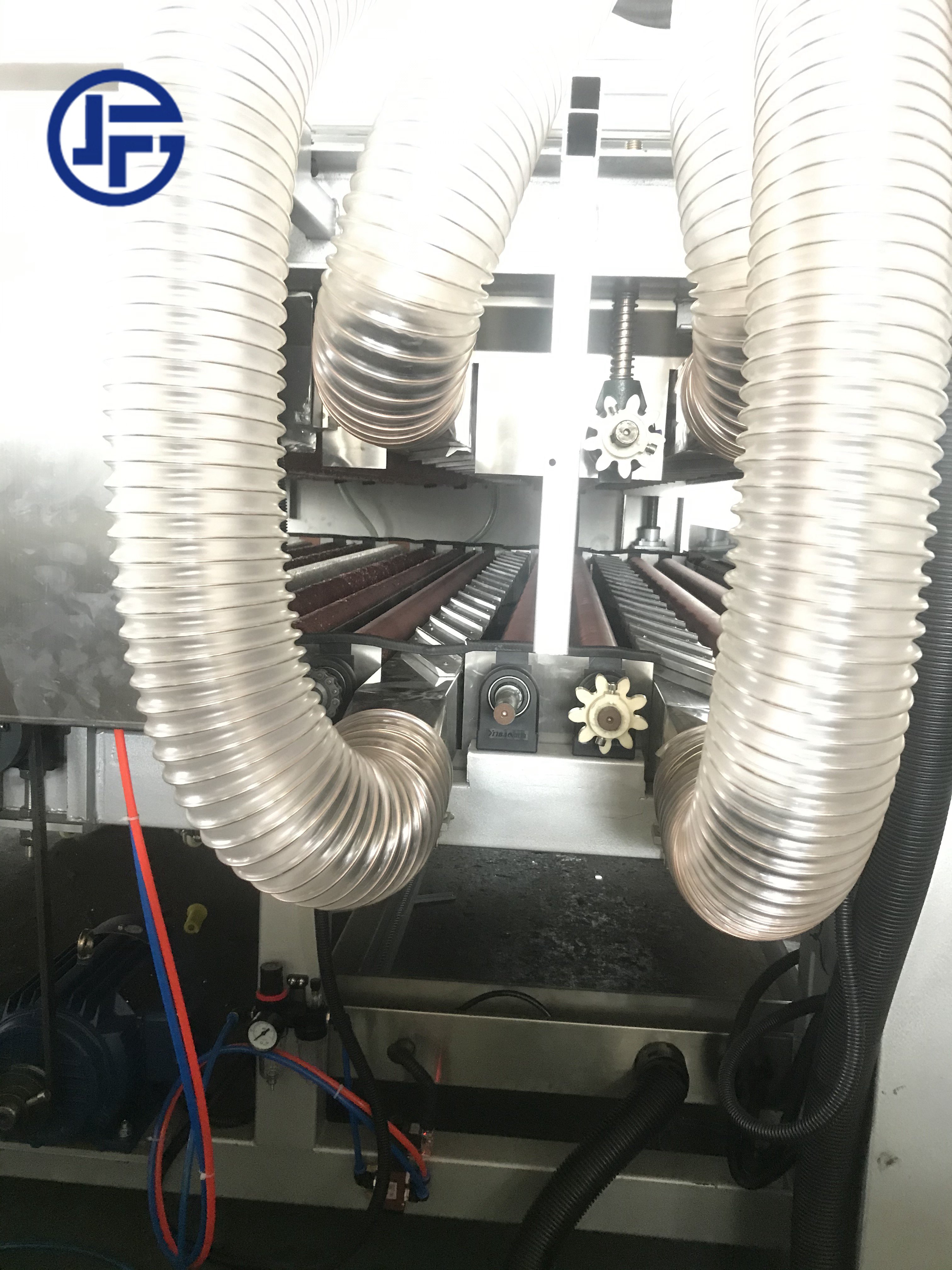

2,Hot air system for drying;
3,The machine can be designed and manufactured according to customer requirements.
  • Product Detail
  • Inquiry
Model
JFW-2500
Glass thickness
3-30mm
Feeding speed
1.5-10 m/min
Min glass size
400x400mm
Max glass width
2500mm
Power
26 KW
Weight
3800KG
Land occupation
7000×3900×2700mm
