JFC-2638 Painted Glass Colored Glass CNC Cutting Machine for Flat Glass Oval Shaped 360° Rotation
The CNC glass cutting machine can cut out any shape of glass with professional graphs soft.It features high accuracy, fast speed,easy operation and wide application.It is applied to the further processing of art glass,optical glass,phone panel and car mirror and so on.
The main features:
1.CNC control
2.Can cut any shape,like round,oval,special shape and etc
3. Fast speed and high accurancy
The main features:
1.CNC control
2.Can cut any shape,like round,oval,special shape and etc
3. Fast speed and high accurancy

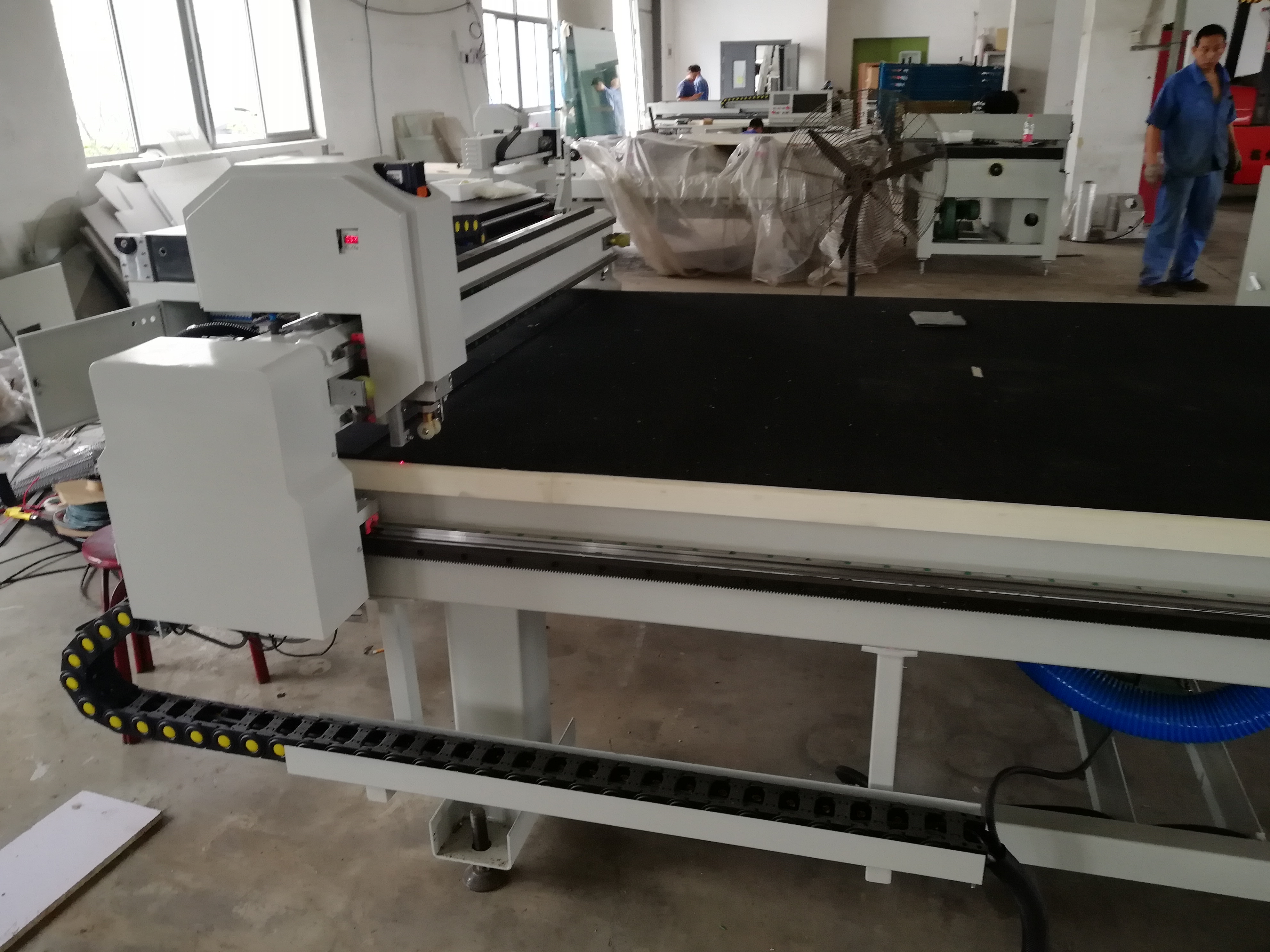

Cutting Head:
The cutter head rotates 360 degrees, cutting glass up and down（can cut any straight line and various shaped accurately）

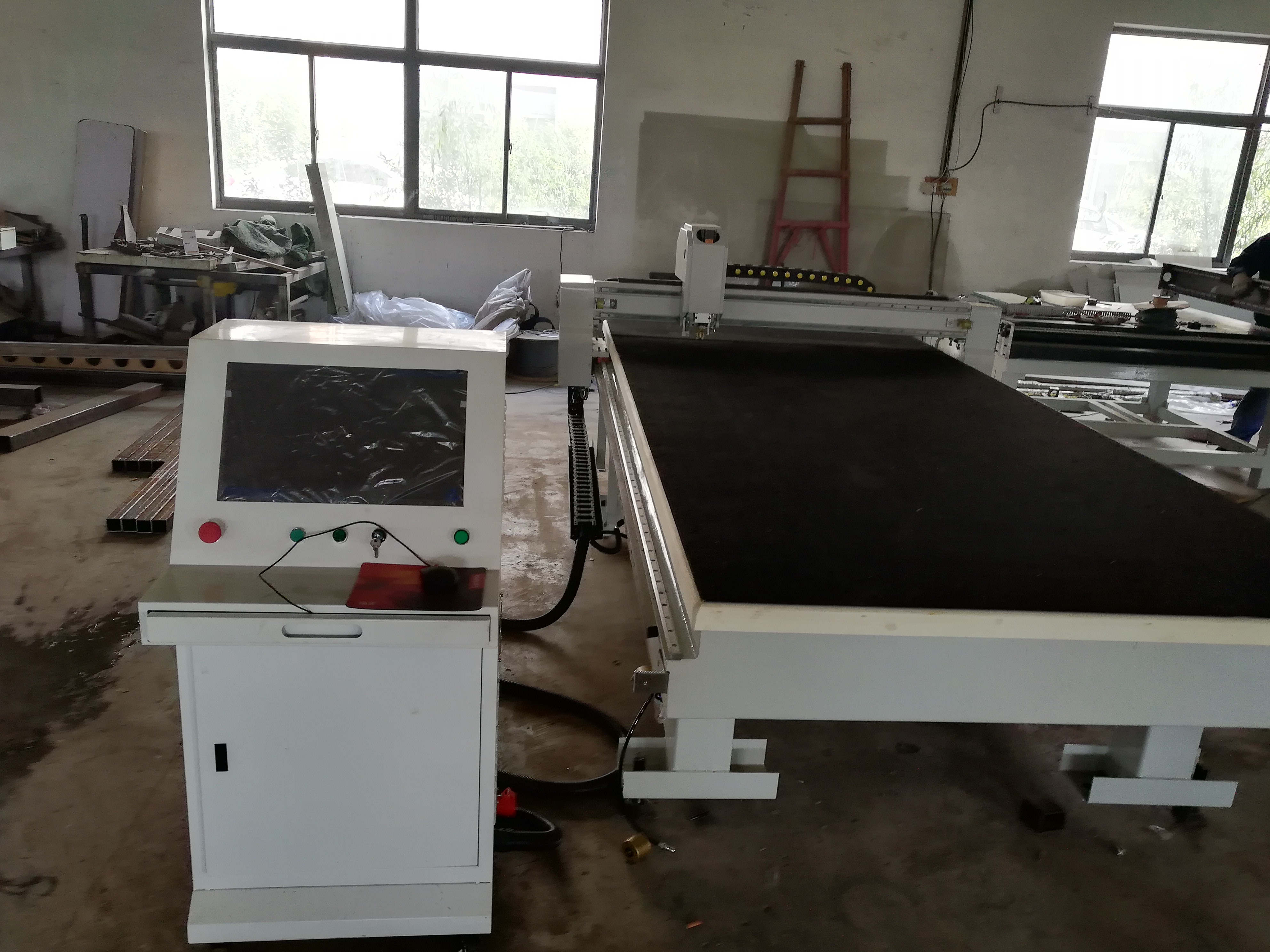

Liquid crystal screen:
It is of humanized design of easy operation and re-upgrade available
- Product Detail
- Inquiry
- Max.Glass width: 3750x2550mm
- Glass thickness: 3-19mm
- Worktable height: 900±50mm
- Straight line parallelism: 0.25mm/m
- Diagonal accuracy: 0.30mm/m
- Cutting speed: 0~160m/min（adjustable）
- Cutting bridge acceleration: ≥3.0m/s²
- Cutter head holder speed: ≥150m/min
- Cutter head holder acceleration: ≥6.0m/s²
- Cutter head positioning accuracy error: ≤±0.15mm
- Installed power: 8KW
- Voltage/frequency : 380v/50hz or others
