- Use for bulk cutting square,rectangle shape flat glass

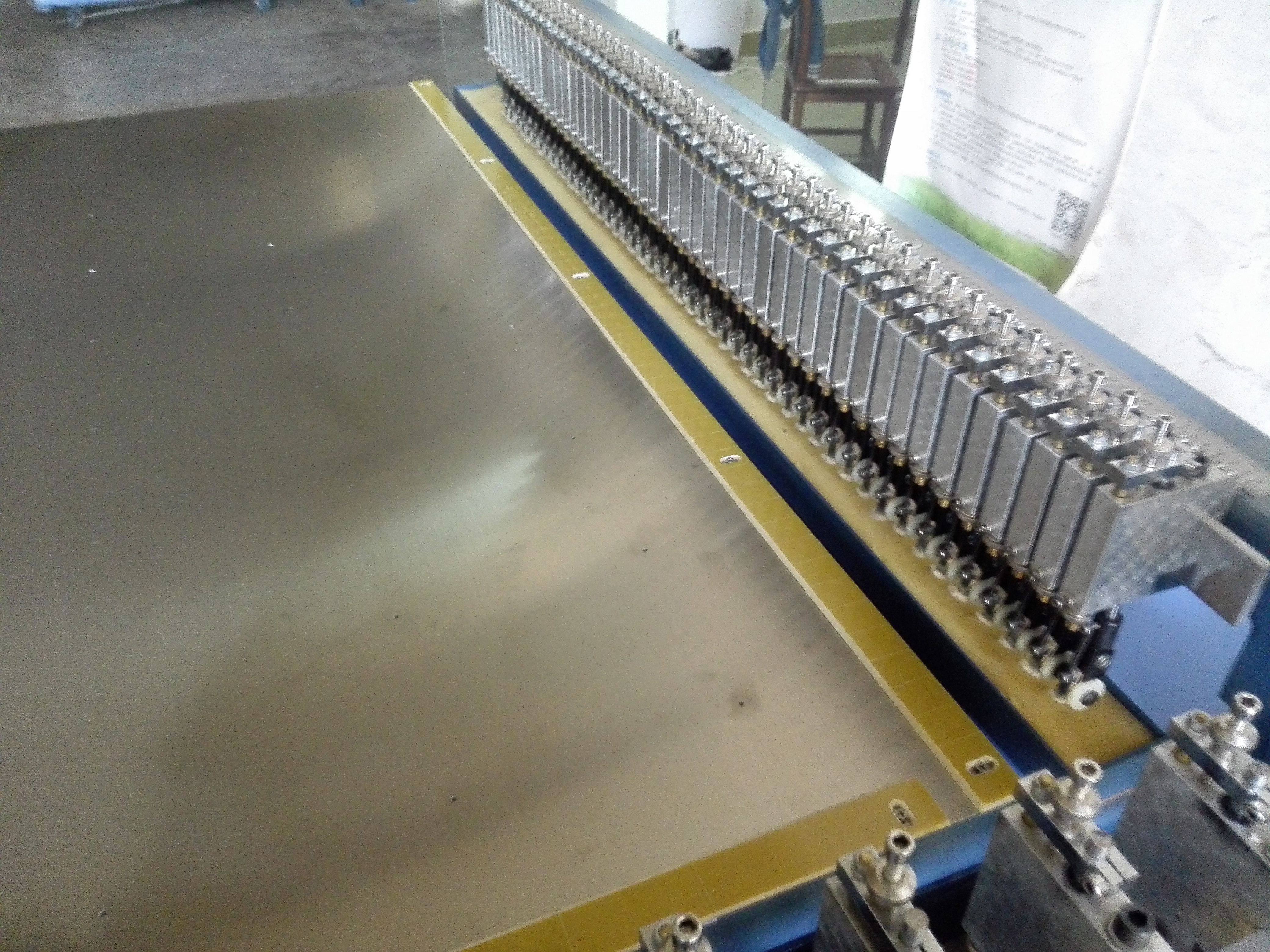

- New type dual spring cutter case: two springs are designed on both sides of central tool rod, featuring the double pressures, smooth and stable cutting. by ajust the distance between the knives to cut different sizes
- Tool holder self-lubricating
- Easy to change the cutter wheel
- Dual circular guide-rails: the tool case adopts the connection with top and bottom round guide-rails for satisfied tightness to facilitate tool case size adjustment;
- Liquid crystal screen: it is of humanized design of easy operation and re-upgrade available.
- Suitable for large glass to be cut into small pieces of glass at one time
- After the worker adjusts the precision knife box according to the size of the desired cutting product, put the glass on, turn on the power, press the automatic device on the control panel, the motor drives the double beam to automatically run the cutting. After the cutting is completed, the double bridge automatically returns to the position.

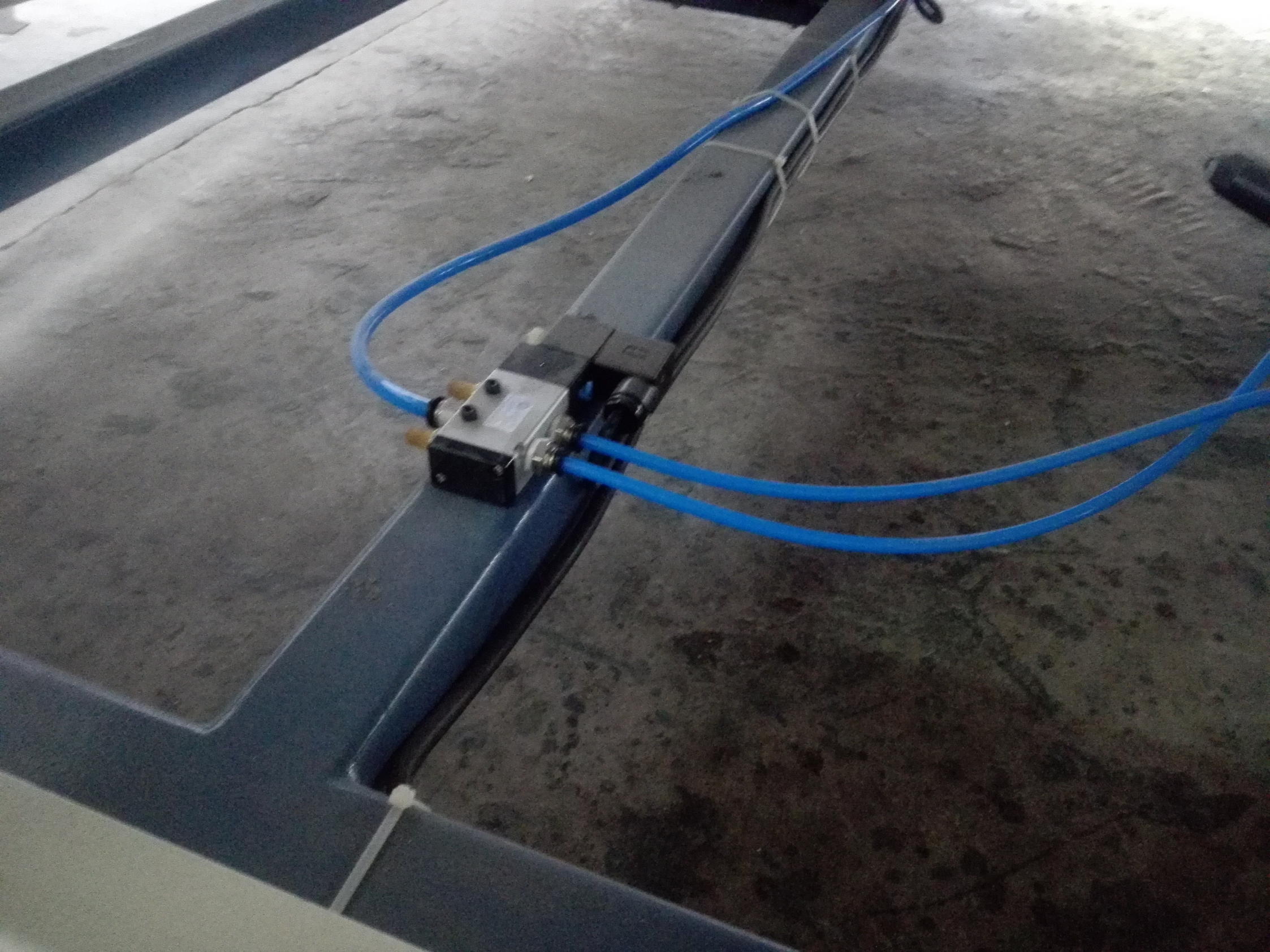

- Equipped with a suction and suction device to prevent the glass from being scratched when the cutting table moves, to protect glass.
Semi-automatic precision cutting machine,it based on the manual synchronization with the transmission, automatic operation and stop function, no need manually pull the two beams, simply press the start button on the control panel, gear drive double-beam automatic operation cutting. The machine is light, simple, smooth operation, reduce labor intensity and improve production efficiency.
The main features:
1.Adpots motor drive, text control, speed and distance can be adjusted
2. Imported wood moisture, overcoming cutting machine table easy to damp deformation and other defects
3. Imported rails and bearings, effectively guarantee the stability of the equipment and accuracy
- Product Detail
- Inquiry
Model: JFQG-2620-SA
Feeding speed: PLC control
Table size: 2600x2000mm
Max.Glass Size: 2500x1900mm
Min. Glass size: 20x20mm
Glass thickness: 3-19mm
Parallelism: ±0.15
Diagonal: ±0.20
Voltage/frequency: 380V/50Hz (Customized)
Weight: 1600kg
Overall size: 3300x2700x1150mm
