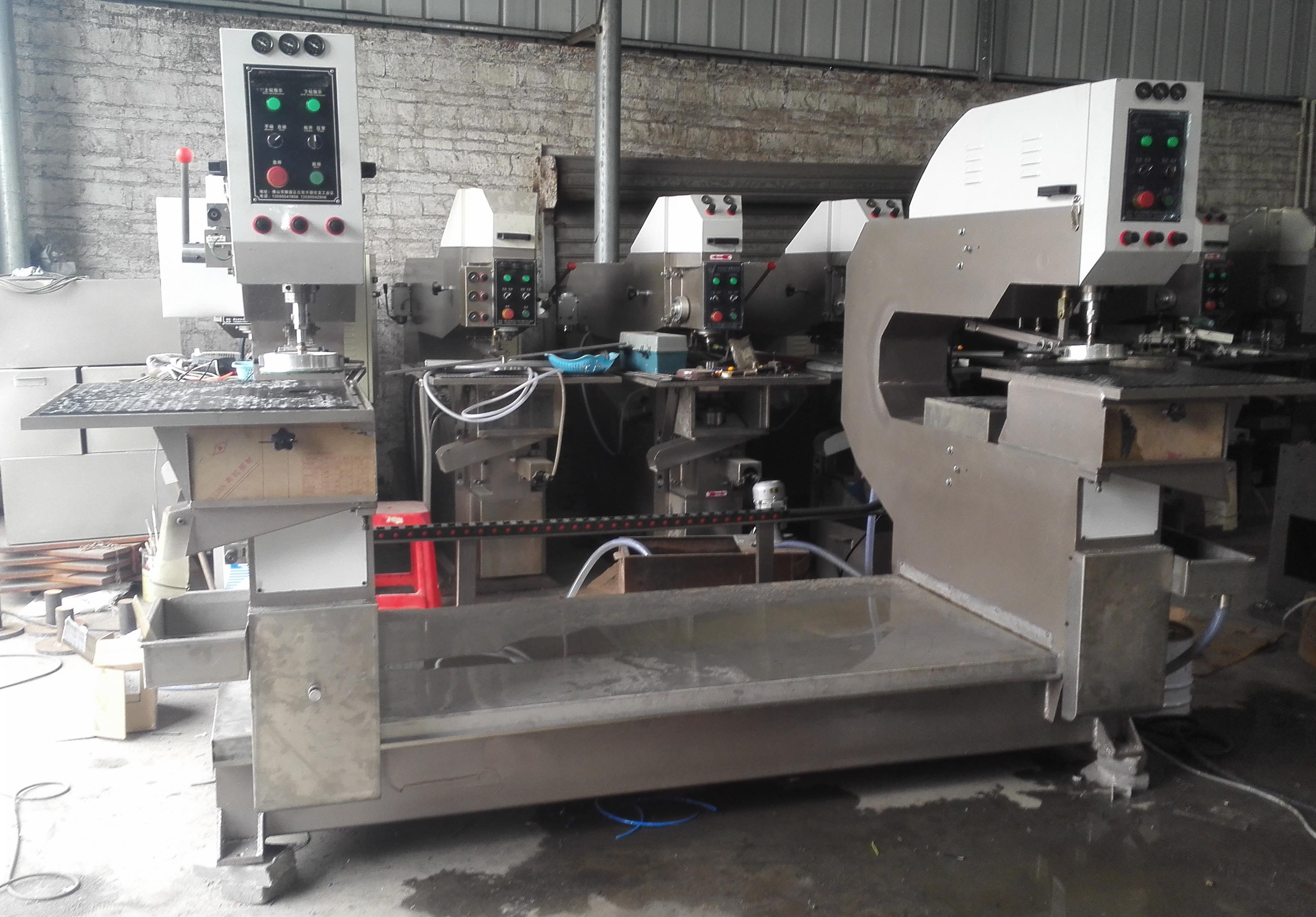

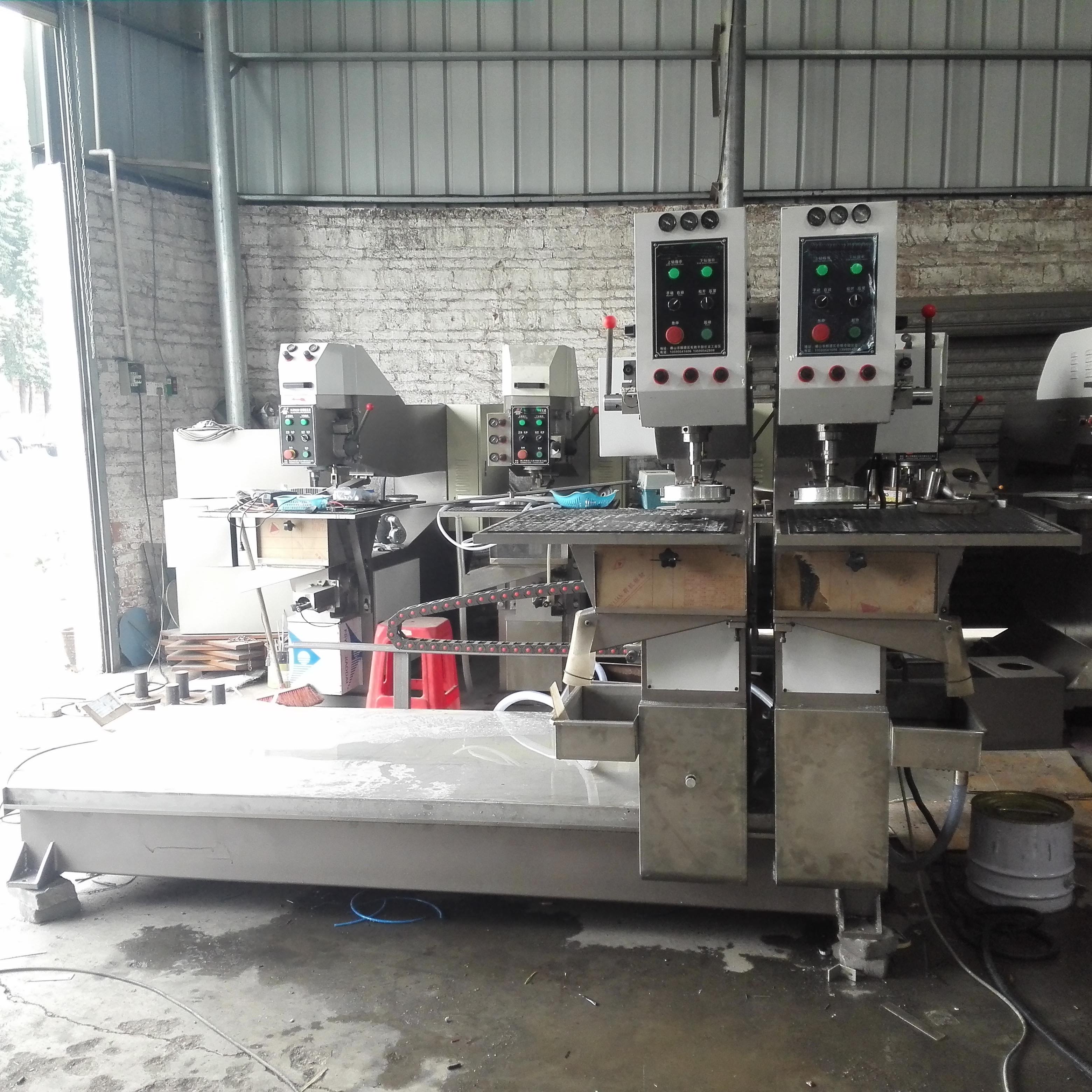

JFO-02 Horizontal customized double head glass drilling machine
JFO-02 Double head glass drilling machine is adopted pneumatically grip. Drilling is atternatively done by upper and reverse. Feeding is automatically operated. Operation platform can be pneumatically elevated. Can drill 2 holes one time.
There are PLC,CNC types are available.
The main features:
1.Touch screen operate,PLC control.
2.Drilling speed is adjusted by variable motor

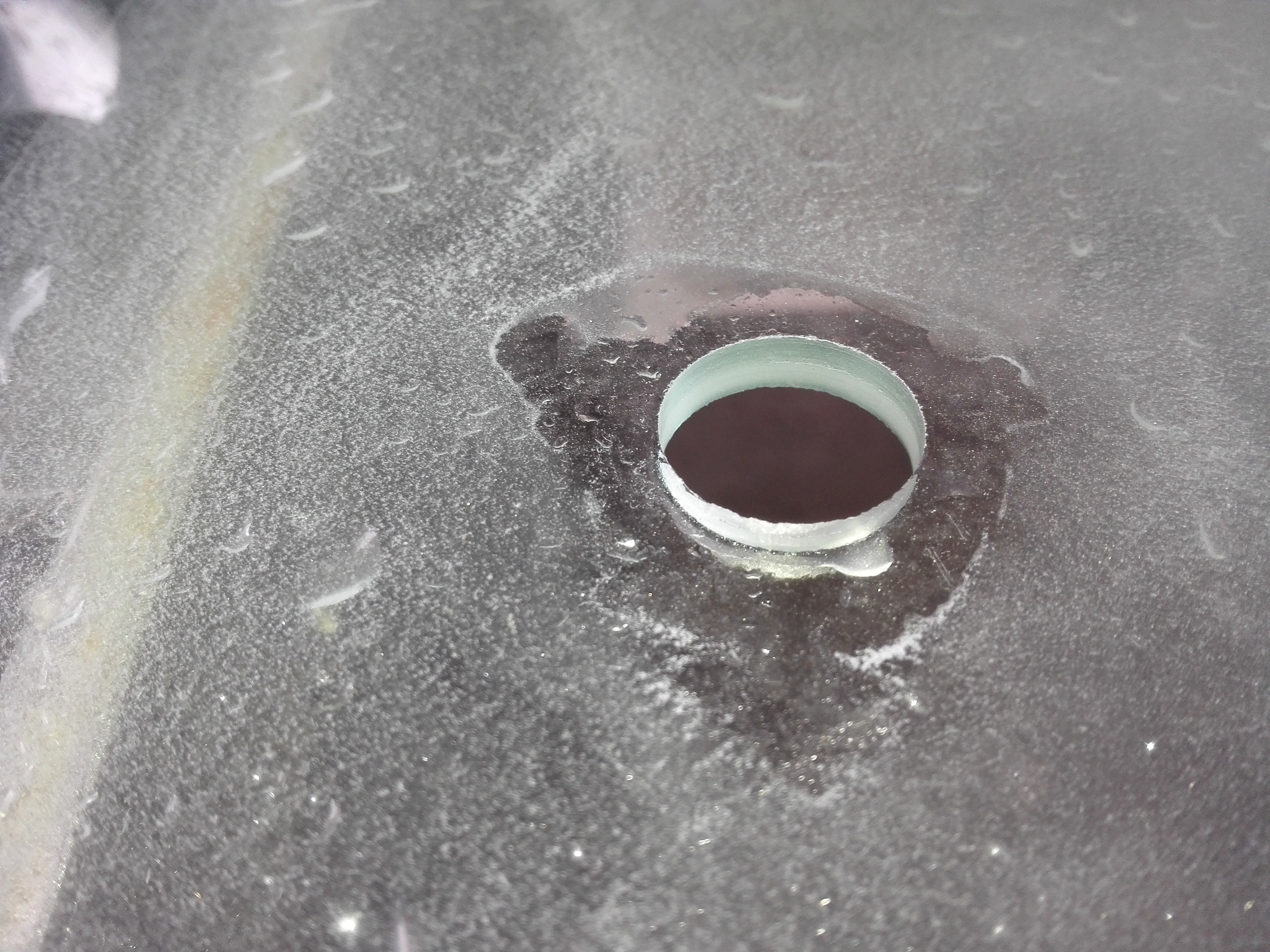

3.Install hydraulic buffer in the end of lower-drill bits so processed hole is not easy chipping.
4.Adopt high precision screw and guider rail control width adjustment
5.2 holes can drill at the same time,high production.
There are PLC,CNC types are available.
The main features:
1.Touch screen operate,PLC control.
2.Drilling speed is adjusted by variable motor
3.Install hydraulic buffer in the end of lower-drill bits so processed hole is not easy chipping.
4.Adopt high precision screw and guider rail control width adjustment
5.2 holes can drill at the same time,high production.
- Product Detail
- Inquiry
|
Product name |
Glass drilling machine |
|
Glass thickness |
3-25mm |
|
Drilling diameter |
Dia.3-100mm |
|
Max. glass size |
2200X2700mm |
|
Power |
2.5Kw |
|
Weight |
1300KG |
|
Dimensions |
2200X2700X1700mm |
